PBA.pro-ARINC429

The PBA.pro-ARINC429 component handles single or multiple ARINC429 resources providing access to all Transmitter, Receiver, Replay Channels and Chronological Bus Monitor functions.

  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Specifications
  • For ARINC429 Protocol Analysers and ARINC615-3 Data Loader Extensions this component is required.

The component provides full and intuitive configuration and access to all ARINC429 channels and to the Chronological Bus Monitor. Depending on the hardware interface type, each channel can be individually configured and used as Transmit, Receive, Replay channel and Loop-Pollution mode.

The component includes additional setup, control and visualisation of optional onboard discretes (if available by used interface board) and is accessed via the PBA.pro Resource Manager of the PBA.pro-FD.

The key features are:

  • Resource Overview for quick visualization and control of resource/board level information
  • Receive channel nodes to provide set-up and configuration of the ARINC429 label reception on ARINC429 Receive channels
  • Transmit channel nodes to provide set-up and configuration of various send scenarios on ARINC429 Transmit channels
  • Replay channels to define and control Physical Bus Replay, synchronous across multiple channels
  • Setup and Control of the Loop-Pollution mode (receive-modify-retransmit ARINC429 data)
  • Chronological Bus Monitor node to define and control Bus Monitor, analysis and export functions
  • Optional Discrete node including chronological bus monitor for Discrete Inputs (dependent on used interface board)
  • Optional Database Manager component PBA.pro-x-DBM for data conversion from raw data into Engineering Units
  • Fully scriptable using the optional PBA.pro-TSM component
Documents

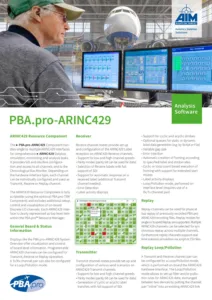

  • Data Sheet
