General Features

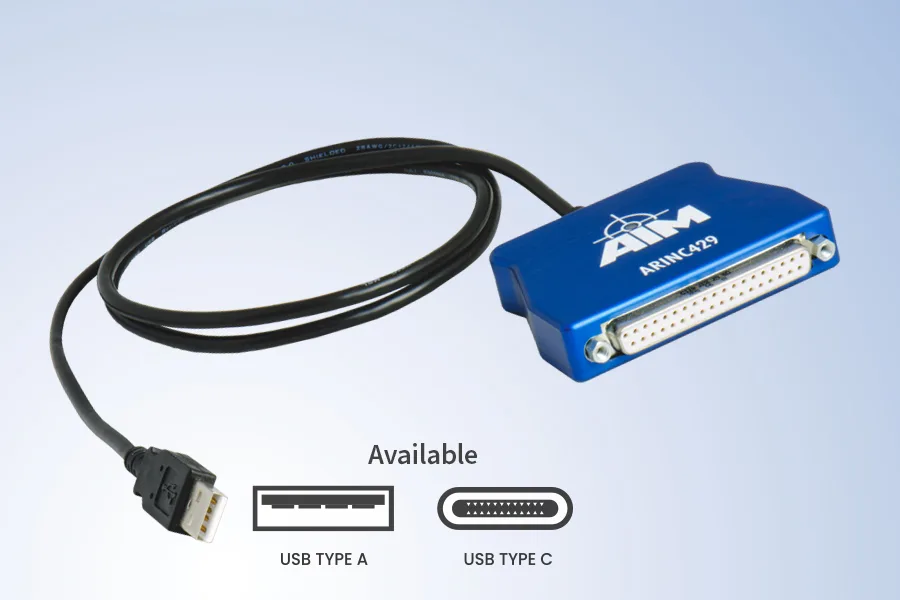

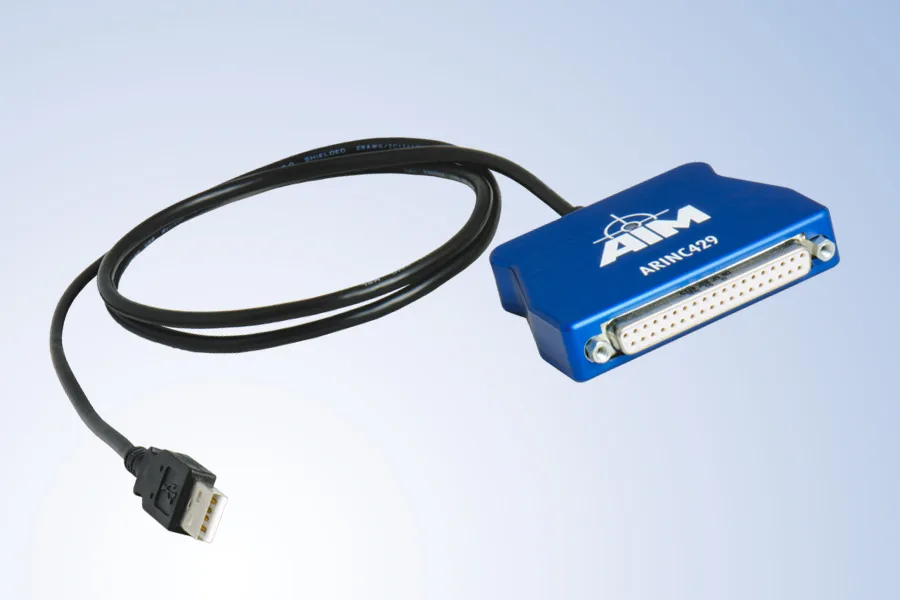

The ASC429-x (AIM SmartCable™) USB module offers full function test, simulation, monitoring and databus analyzer capabilities for ARINC429 applications.
- Available in configurations with 2Tx/4Rx (6 channels) and 4Tx/8Rx (12 channels)
- Powered from the host computer via the single USB2.0 (or higher) connection – no external power adapter is required
- Designed in a connector housing size
- Supports up to 8 discrete input/output signals to be monitored or generated
Onboard Processing – IRIG-B Time Synchronization
An onboard high-precision free-wheeling IRIG-B time encoder/decoder allows users to accurately synchronize single or multiple
ASC429-x modules to a common time source.
Board Software Package – Optional Analyzer Software
Full function driver software is delivered with the ASC429-x cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with ASC429-x modules.
ARINC429 Functionality on further Form Factors
ARINC 429 PCI | ARINC 429 PCIe | ARINC 429 PMC |
ARINC 429 XMC | ARINC 429 PXI | ARINC 429 PXIe |
ARINC 429 CPCI | ARINC 429 CPCIe | ARINC 429 Ethernet |
ARINC 429 USB | ARINC 429 VME | ARINC 429 PCIe Mini Card |
USB 2.0 SmartCable™ for ARINC429 Test and Simulation with 6 channels (2Tx/4Rx) and 12 channels (4Tx/8Rx).
- Robust and Low Power USB2.0 module with up to 12 ARINC429 channels powered via single USB2.0
(or higher) – no external power adapter required - Hot Plug capability
- Ruggedised 37-pin D-Sub connector
- Cyclic/Acyclic/FIFO Transmitter operation
- Loop/Pollution mode (Receive-Modify-ReTransmit)
- Full Error Injection/Detection capability
- Multi Level Triggering for Capturing/Filtering
- Real Time Recording and Synchronised Bus Replay
- IRIG-B Time Encoder/Decoder for Data Correlation
- Drivers for Linux and Windows (incl. LabView VIs)
- Compatible with PBA.pro
- Software compatible with AIM’s family of ARINC429 cards
- Data Sheet
- Release Notes
- User Manuals
- Tutorials
- Video
![ASC429-x](https://www.aim-online.com/wp-content/uploads/2023/09/aim-ds-asc429-x-230901-pdf-212x300.jpg)

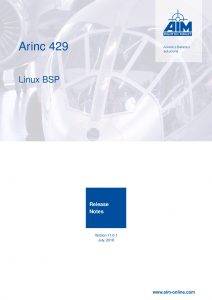

![ARINC429 Windows Release Notes](https://www.aim-online.com/wp-content/uploads/2022/06/Release_Notes-12.3.0-3-pdf-212x300.jpg)
![ARINC429 Linux Release Notes](https://www.aim-online.com/wp-content/uploads/2017/08/Release_Notes-12.4.0-pdf-212x300.jpg)
![ARINC429 Windows Getting Started](https://www.aim-online.com/wp-content/uploads/2022/06/Arinc429_Windows_BSP_Getting_Started-12.3.0-1-pdf-212x300.jpg)
![ARINC429 Linux Getting Started](https://www.aim-online.com/wp-content/uploads/2017/08/Arinc429_Linux_BSP_Getting_Started-12.4.0-pdf-212x300.jpg)

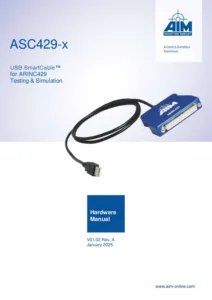

![ASC429 Hardware Manual](https://www.aim-online.com/wp-content/uploads/2018/01/ASC429-Hardware-Manual-V01.01_RevC-pdf-212x300.jpg)
