Application Software is the AIM core software platform for Avionics Test and Analysis applications
Latest Version for Windows
Latest Version for Linux


Click here to watch AIM’s >   Demo Video – General Features




Click here for more > downloads like Manuals, Release Notes, etc.

What is

The is the AIM core software platform for Avionics Test and Analysis application with AIM’s family of high performance avionics test and simulation interface modules plus a wide range of 3rd party hardware. is modular, scalable and customizable by the user to cover a wide range of applications in an extremely efficient manner.

The software runs on Windows and Linux platforms and integrates the essential features for today’s and tomorrow’s Avionics test, development, simulation, monitoring and analysis applications.

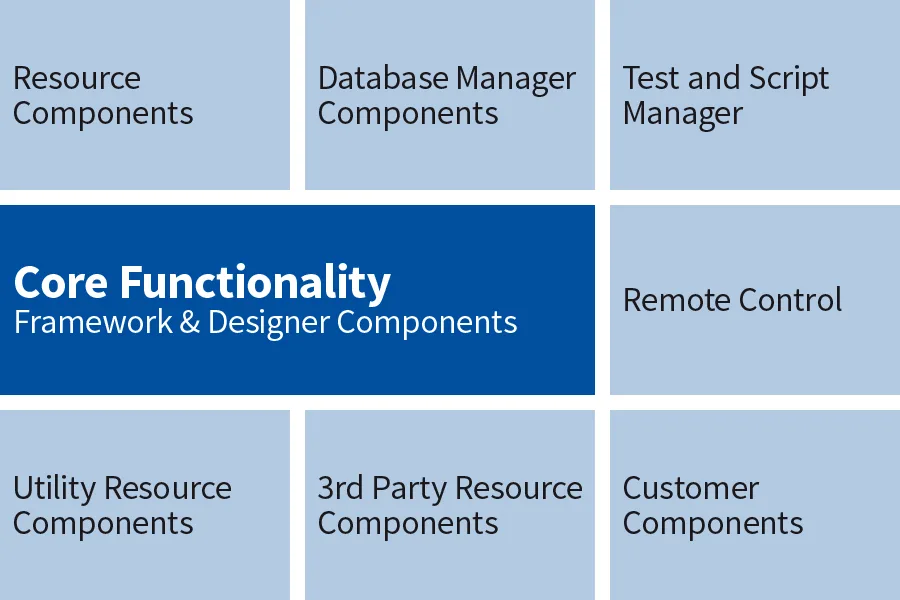

Various customization capabilties via Scripts, user defined Panels and dedicated GUIs support the for use as a simple Databus Protocol Analyzer up to System Test and Integration tool for handling multiple data buses via single software solution. at a Glance - modular, scalable and integrated approach for a broad range of avioncs applications by AIM. Key Features core functionalities can be summarized as follows:

  • Modular, scalable and integrated Software platform
  • Support for Windows and Linux
  • Fully automatable and customizable via Scripts, Remote Control and User Dialogs
  • Manage single or multiple AIM Avionics Interfaces and 3rd party hardware resources within a single Framework is the Software Platform for:

  • Low and High level Protocol/Network analysers
  • Recording/Monitoring/Data Logging Systems
  • Special-to Type Test Equipment (STTE) – Test benches and integration rigs
  • ‘Hardware in the Loop’ simulation
  • In-Service and maintenance toolsets offers flexible licensing options

  • Full License: access to all features and components via GUI
  • Light: typical network/protocol Analyzer features
  • Runtime: for use with customized and pre-configured panels, scripts Server/Client support for data distribution to multiple workstations

A Engine can be embedded and executed into the AIM ANET (Ethernet based) interface family.

Add-on Script Packages for the support of various test plans:

  • AS4111 and AS4112 Protocol and Electrical Test Plans
  • ARINC664P7 End System/Switch compliance tests
  • STANAG3910 RT Production Test Plan

Useful utility scripts, panels, etc. are free available via download of the ‘Accessories’ section of the Framework  component.
