PBA.pro-MIL

The PBA.pro-MIL component handles single or multiple MIL-STD-1553 resources providing access to all Bus Controller, Multiple Remote Terminal, Chronological Bus Monitor and Physical Bus Replay functions.

  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Specifications
  • For MIL-STD-1553 Protocol Analysers and Test Plan Script Packages this component is required.

This component provides full and intuitive configuration and access to all functional groups of each available MIL-STD-1553 stream, which can be a Bus Controller, Multiple Remote Terminals, Chronological Bus Monitor and Physical Bus Replay.

The component includes additional setup, control and visualization of optional onboard Discretes and MILScope utility (if available by used interface board) and is accessed via the PBA.pro Resource Manager of the PBA.pro-FD.

The key features are:

  • Graphical System Overview for quick visualization and control of resource/board level information
  • Bus Controller (BC) node to define and execute Bus Controller transactions
  • Remote Terminal (RT) node to define and control multiple Remote Terminals
  • Chronological Bus Monitor (BM) node to define and control Bus Monitor, analysis and export functions
  • Replay node to define and control Physical Bus Replay
  • Optional MILScope node for MIL-STD-1553 waveform capturing and analysis functions
  • Optional Discrete node including chronological bus monitor for Discrete Inputs (dependent on used interface board)
  • Optional Database Manager component PBA.pro-x-DBM for data conversion from raw data into Engineering Units
  • Fully scriptable using the optional PBA.pro-TSM component
Documents
  • Data Sheet
  • Video
Data Sheet

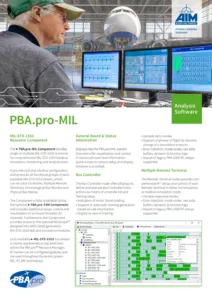

PBA.pro-MIL
