General Features

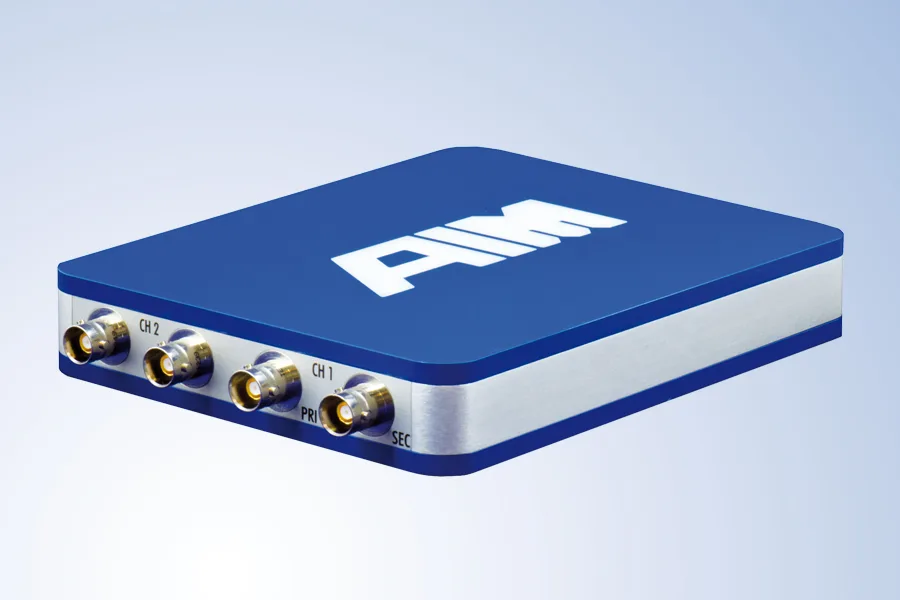

The ANET1553-x is a member of AIM’s Ethernet based modules for analyzing, simulating, monitoring and testing MIL-STD-1553A/B databuses providing 1 or 2 dual redundant bus streams.
- Concurrently acts as Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor
- Physical Replay capability- electrically reconstruct and replay previously recorded MIL-STD-1553A/B record files physically to the
MIL-STD-1553A/B bus with excellent timing accuracy - Versions with reduced functionality (Single Function or Simulator Only) are available as well as dockable versions for use in
ADock Docking Station - Capability to handle 8 General Purpose Discrete I/O (GPIO) signals and also offer Trigger I/O
Common Core Hardware Design
The ANET1553-x modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors
(Bus Interface Units) to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.
Onboard Processing – IRIG-B Time Synchronization
The onboard ASP (Application Support Processor) which is based on a SoC (System on Chip) hardware device is running under
Linux OS. This offers a scalable and flexible platform for hosting various onboard applications.
An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.
Board Software Package – Optional Analyzer Software/Test Plan Software
Full function driver software is delivered with the ANET1553-x modules in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with ANET1553-x modules.
MIL-STD-1553 Functionality on further Form Factors
1553 PCI | 1553 PCIe | 1553 PMC |
1553 XMC | 1553 PXI | 1553 PXIe |
1553 CPCI | 1553 CPCIe | 1553 PCIe Mini Card |
1553 USB | 1553 VME | 1553 Ethernet |
![Aim Module Anet1553 2 V2 Rear 170820](https://www.aim-online.com/wp-content/uploads/2017/08/aim-module-anet1553-2-v2-rear-170820-300x200.jpg)

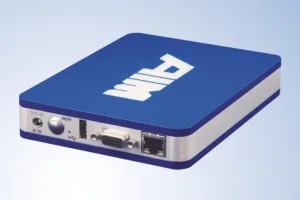

The ANET1553-x is a member of AIM’s new line of Ethernet based modules for analysing, simulating, monitoring and
testing MIL-STD-1553A/B databuses.
The capability to execute Python scripts in the ANET is a standard feature. For applications with multiple ANET devices AIM offers the ADock ANET Docking Station to host up to 4 ANET modules.
- Concurrent BC, MRT (31) and Chronological Monitor
- Full Error Injection/Detection (AS4112)
- Complex Triggering, Data Capture/Filtering, 100% Bus Recording
- Physical Bus Replay
- IRIG-B Time Encoder/Decoder
- Full Function, Single Function and Simulator Only versions available
- Drivers for Linux and Windows
- Embedded Web Server and Configuration Application
- Optional Databus Test and Analysis Software and RT Production Test Plan

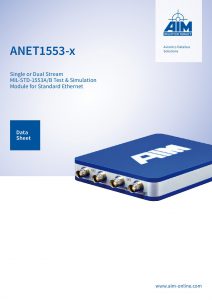

- Data Sheet
- Release Notes
- User Manuals
- Tutorials
- White Paper
![ANET1553-x](https://www.aim-online.com/wp-content/uploads/2024/01/aim-ds-anet1553-x-02-240111-pdf-212x300.jpg)
![MIL-STD-1553 Windows Release Notes](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-Release-Notes-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Linux Release Notes](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-Release-Notes-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Windows Getting Started](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Reference Manual](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Reference-Manual-24.20.0-pdf-212x300.jpg)
![MIL-STD-1553 Linux Getting Started](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)

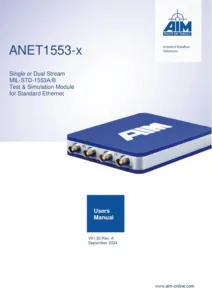

![ANET1553-x User Manual](https://www.aim-online.com/wp-content/uploads/2017/11/ANET1553-Users-Manual_V0134_RevA-pdf-212x300.jpg)
