ACE1553-3U-x-DS

Single or Dual Stream MIL-STD-1553A/B
Test & Simulation Modules for
CompactPCI-Express/PXI-Express (3U) with the option for MILScope™ capability

  • Overview
  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Overview

General Features

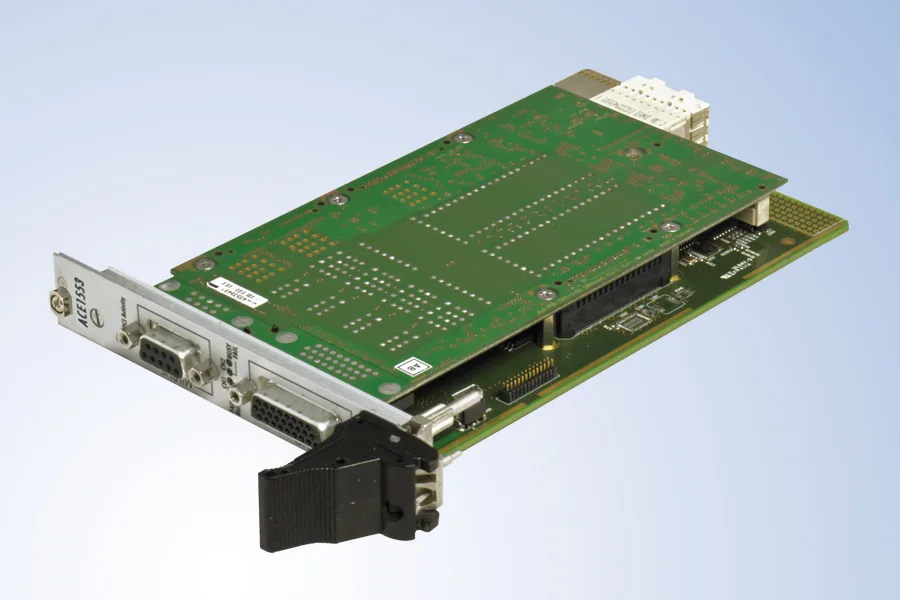

The ACE1553-3U-x-DS is a member of AIM’s new family of compact PCI-Express/PXI-Express modules for analyzing, simulating, monitoring and testing MIL-STD-1553A/B databuses providing 1 or 2 dual redundant bus streams.

  • Concurrently acts as Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor
  • Physical Replay capability- electrically reconstruct and replay previously recorded MIL-STD-1553A/B record files physically to the
    MIL-STD-1553A/B bus with excellent timing accuracy
  • MILScope™ with onboard A/D converter to test and verify the MIL-STD-1553 waveform and detect faulty bus conditions without the need of  an external oscilloscope
  • Versions with reduced functionality (Single Function or Simulator Only) are available as well as extended temperature range variants
  • Capability to handle up to 5 General Purpose Discrete I/O (GPIO) signals which can be monitored or controlled

Common Core Hardware Design
The ACE1553-3U-x-DS modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors
(Bus Interface Units) to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.

Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for MIL-STD-1553 protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.

Board Software Package – Optional Analyzer Software/Test Plan Software
Full function driver software is delivered with the ACE1553-3U-x-DS cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with ACE1553-3U-x-DS modules. Off the shelf test scripts are available to support the automatic execution of the AS4112 RT Production Test Plan (Protocol and Electrical Tests) and the AS4111 RT Validation Test Plan (Protocol Tests).

MIL-STD-1553 Functionality on further Form Factors

1553 PCI 1553  PCIe 1553 PMC
1553 XMC  1553 PXI  1553 PXIe
1553 CPCI  1553 CPCIe  1553 PCIe Mini Card
 1553 USB  1553 VME 1553 Ethernet
Specifications

A unique feature of AIM’s ACE1553-3U-x module is the option for the MILScope™ capability.

Models ACE1553-3U-1/2-DS integrate an onboard Analogue to Digital Convertor (ADC) which samples, measures and stores the
MIL-STD-1553 waveform. Automatic waveform validation is performed by the users Application Software or in conjunction with AIM’s PBA.pro Databus Test & Analysis Software.

  • Concurrent BC, MRT (31) & Chronological Monitor
  • Full Error Injection/Detection (AS4112)
  • Complex Triggering, Data Capture/Filtering, 100% Bus Recording, Physical Bus Replay
  • IRIG-B Time Encoder/Decoder
  • PXI Triggering and PXI System Clock Capabilities
  • Full Function, Single Function & Simulator Only versions available
  • Drivers for Linux and Windows
  • Optional Databus Test & Analysis Software & RT Production Test Plan
Documents

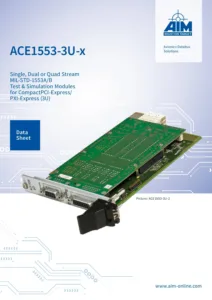

  • Data Sheet

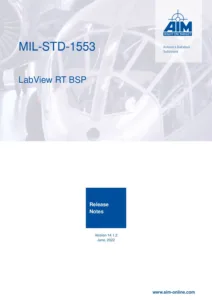

  • Release Notes

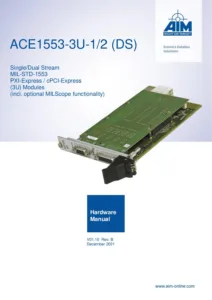

  • User Manuals
  • Tutorials
Software
Accessories
ACB-PCI-1

Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to two Twinax Connectors PL-75

ACB-PCI-1 Pin-Out:
6.96 KB
ACB-PCI-2

Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to four Twinax Connectors PL-75

ACB-PCI-2 Pin-Out:
Download 7.77 KB
ACB-HD15-2

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75

ACB-HD15-2-F

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75 and 9-pin D-Sub Connector for Trigger I/O and IRIG-B

ACB-HD15-2-F Pin-Out:
321.01 KB
Related Products
PBA.pro-MIL
PBA.pro-MIL

MIL-STD-1553 Resource Component

See details
PBA.pro-FD
PBA.pro-FD

Framework and Designer Component

See details
PBA.pro-x-DBM
PBA.pro-x-DBM

Database Manager Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
PBA.pro-UA
PBA.pro-UA

User Administration Component

See details
PBA.pro-SCR-PTP-E
PBA.pro-SCR-PTP-E

RT Production Test Plan - Electric Waveform Tests

See details
PBA.pro-SCR-PTP-P
PBA.pro-SCR-PTP-P

RT Production Test Plan - Protocol Tests

See details
PBA.pro-SCR-VTP-P
PBA.pro-SCR-VTP-P

RT Validation Test Plan - Protocol Tests

See details
