General Features

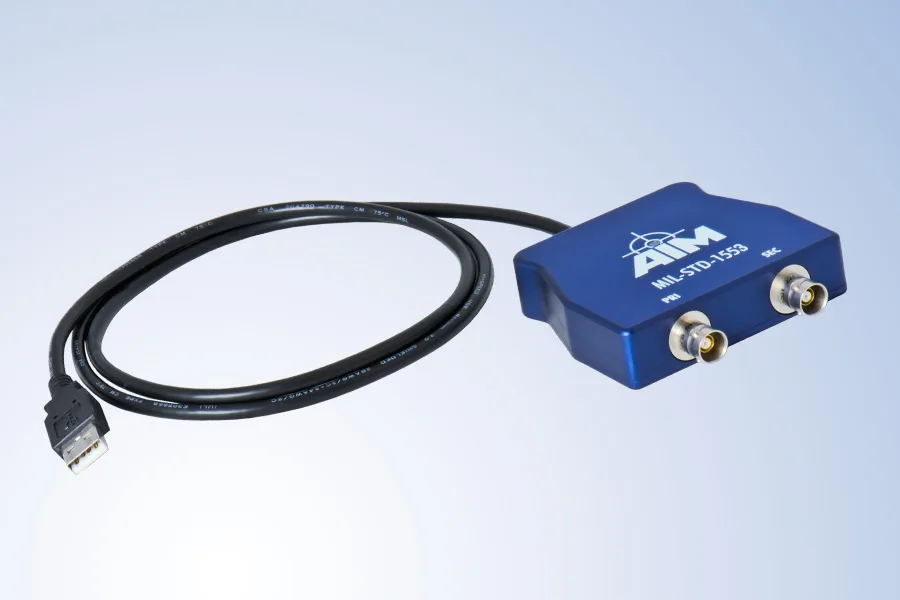

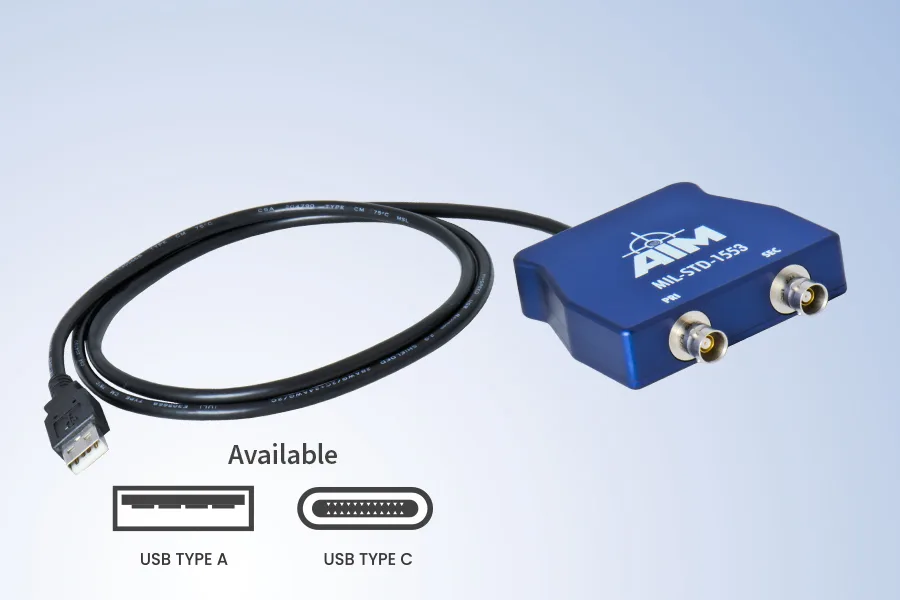

The ASC1553 (AIM SmartCable™) USB module offers full function test, simulation, monitoring and databus analyzer capabilities for
MIL-STD-1553 applications.
- Provides a dual redundant MIL-STD-1553 interface and concurrently acts as Bus Controller, Multiple Remote Terminals (31) and
Chronological/Mailbox Monitor - Powered from the host computer via the single USB2.0 (or higher) connection – no external power adapter is required
- Designed in a connector housing size
- Supports up to 8 discrete input/output signals to be monitored or generated (ASC1553-A only)

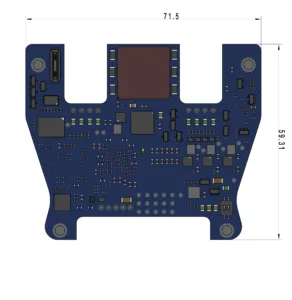

- Available as a “PCB only” variant for integration into custom systems
Onboard Processing – IRIG-B Time Synchronization
An onboard high-precision free-wheeling IRIG-B time encoder/decoder allows users to accurately synchronize single or multiple
ASC1553 modules to a common time source (ASC1553-A only).
Board Software Package – Optional Analyzer Software
Full function driver software is delivered with the ASC1553 cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) is compatible to the ASC1553.
MIL-STD-1553 Functionality on further Form Factors
1553 PCI | 1553 PCIe | 1553 PMC |
1553 XMC | 1553 PXI | 1553 PXIe |
1553 CPCI | 1553 CPCIe | 1553 PCIe Mini Card |
1553 USB | 1553 VME | 1553 Ethernet |
The ASC1553 (AIM SmartCable) USB module offers full function test, simulation, monitoring and recording for MIL-STD-1553B applications implemented in an ultra compact form factor.
- Robust and Low Power USB2.0 module implementing a dual redundant MIL-STD-1553 Interface, powered via single USB2.0 (or higher), no external power adapter required
- Hot Plug Capability
- Single Stream, Dual Redundant Implementation
- Concurrent Bus Controller, 31 Remote Terminals and Bus Monitor
- Full Error Injection/Detection Capability
- Multi Level Triggering for Capturing/Filtering
- Real Time Recording and Physical Bus Replay at 100% Bus Loads
- Drivers for Linux and Windows
- Optional Databus Test and Analysis Software and RT Production Test Plan
- Software compatible with AIM’s Family of MIL-STD-1553 cards

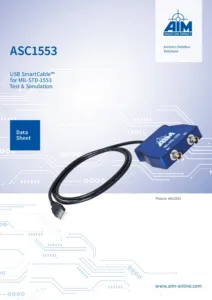

- Data Sheet
- Release Notes
- User Manuals
- Tutorials
![ASC1553](https://www.aim-online.com/wp-content/uploads/2023/10/aim-ds-asc1553-01-230901-pdf-212x300.jpg)
![MIL-STD-1553 Windows Release Notes](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-Release-Notes-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Linux Release Notes](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-Release-Notes-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Windows Getting Started](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Reference Manual](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Reference-Manual-24.20.0-pdf-212x300.jpg)
![MIL-STD-1553 Linux Getting Started](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)

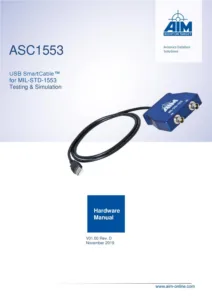

![ASC1553 Hardware Manual](https://www.aim-online.com/wp-content/uploads/2018/01/ASC1553-Hardware-Manual-V01.00-RevD-pdf-212x300.jpg)
