ACP-FDX-2/B

2 Port AFDX/ARINC664P7 Test and Simulation
Module for PCI

  • Specifications
  • Documents
  • Software
  • Contact
Specifications

AFDX/ARINC664P7 Test and Simulation module for PCI with 2 full duplex ports programmable for 10Mbit/s, 100Mbit/s or 1000Mbit/s.
Versions available for both Airbus and Boeing variants of ARINC664P7.
Integrated modular solution by using the AMCX-FDX-2/B PMC card installed on AIM’s ACP-1 generic PCI carrier card.
ACP-FDX-2/B is the successor of the legacy API-FDX-2/B module.

  • Test, Verification and Simulation of AFDX/ARINC664P7 End Systems, Switches and Networks
  • Support for Single or Redundant AFDX/ARINC664P7 operation
  • Receive Modes: Chronological Monitoring and Recording (100% Wire Speed) plus UDP Port/VL oriented receive
  • Transmission Modes: Generic Transmit Operation, Physical Replay and End System Simulation Mode
  • TAP Mode: to analyze the network traffic between 2 attached network devices (inline)
  • Physical Error Injection/Detection
  • Provisions for network latency measurement and analysis
  • IRIG-B Time Encoder/Decoder
  • Generic Tx/Rx Function Only and Simulator Tx/Rx Function Only versions available
  • Compatible to ‘Standard Ethernet’ applications
  • Drivers for 32/64-bit Linux and 32/64-bit Windows
  • Optional Network Test and Analysis and ARINC615A Dataloader Software
Documents
  • Data Sheet

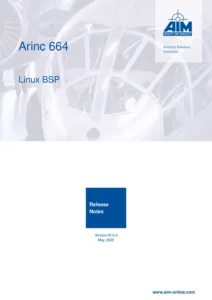

  • Release Notes

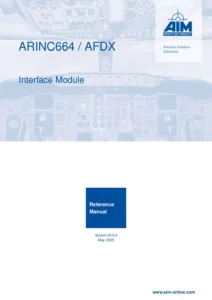

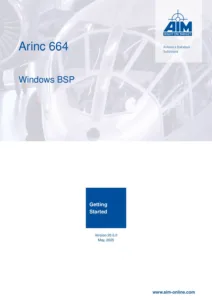

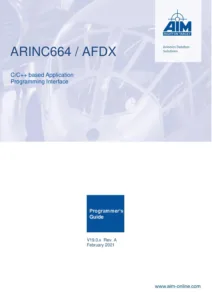

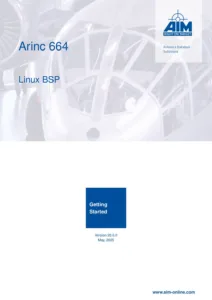

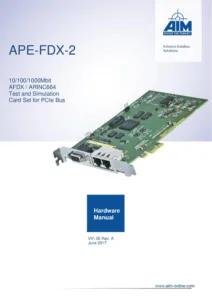

  • User Manuals
Software
  • Windows
  • Linux
  • NI LabVIEW Real-Time
Windows
Linux
NI LabVIEW Real-Time
Latest Version
