PBA.pro-ETH

The PBA.pro-ETH component handles single or multiple Ethernet resources (implemented via AFDX®/ARINC664P7 interface boards) enabling real time transmission, reception and time stamping of standard Ethernet frames.

  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Specifications
  • For a Standard Ethernet Network Analyser this component is required.

The component provides full and intuitive configuration and access to all Capture and Send functions of each network port and is accessed via the PBA.pro Resource Manager of the PBA.pro-FD.

The key features are:

  • Resource Overview for quick visualization and control of resource/board level information
  • Capture mode supports Chronological (Frame based) reception incl. recording to disk
  • Runtime Info node for global statistics and Event-Log information
  • Send mode supports Generic Send list (Frame based) or Replay (traffic reconstruction based on recorded data)
  • TAP mode support for inline monitoring  of standard Ethernet traffic (dependent on used interface board)
  • Optional Database Manager component PBA.pro-x-DBM for data conversion from raw data into Engineering Units
  • Fully scriptable using the optional PBA.pro-TSM component
  • Optional REROS function (ReRoutingSoftware: receive-modify-retransmit frames)
  • Special version for the AIM fdXTap available, with support for 4 Capture Only ports
Documents

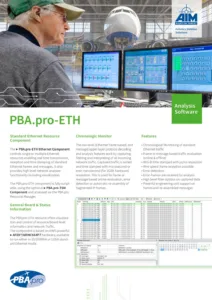

  • Data Sheet
Data Sheet
PBA.pro-ETH
Download PBA.pro-ETH 18-02-22 326.42 KB
Software
  • Windows
  • Linux
Windows
Latest Version
Linux
Accessories
PBA.pro SNMP (Simple Network Management Protocol) Browser
PBA.pro SNMP (Simple Network Management Protocol) Browser

The PBA.pro SNMP Browser is an easy to use graphical user interface tool that combines the features of the PBA.pro AFDX®/ARINC664P7 component with the Python SNMP v1 library. The PBA.pro SNMP Browser acts as SNMP Management console to interactively send SNMP Get, Set, GetNext and Walk request messages to SNMP Agents in an AFDX®/ARINC664P7 network. The received response messages are evaluated and printed chronologically in a result table overview. This accessory requires the PBA.pro AFDX®/ARINC664P7 resource component and the PBA.pro Test and Script Manager.

06.02.2013 1.08 MB
Related Products
PBA.pro-x-DBM
PBA.pro-x-DBM

Database Manager Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
ACC-FDX-3U-2/B
ACC-FDX-3U-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 CPCI (3U) Module

See details
AMCX-FDX-2/B
AMCX-FDX-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 PMC Module

See details
APE-FDX-2/B
APE-FDX-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 PCIe Module

See details
APU-FDX-2/B
APU-FDX-2/B

2 Port 10/100MBit/s AFDX®/ARINC664P7 USB Module

See details
AXC-FDX-2/B
AXC-FDX-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 XMC Module

See details
