PBA.pro-AFDX®/ARINC664P7

The PBA.pro-AFDX® component handles single or multiple AFDX®/ARINC664P7 resources providing access to all Capture, Send and Simulation ports with Network Databus Analyser functions.

  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Specifications
  • For AFDX®/ARINC664P7 Network Analysers and Test Plan Script Packages this component is required.

The component provides full and intuitive configuration and access to all Capture, Send and Simulation functions of each network port and is accessed via the PBA.pro Resource Manager of the PBA.pro-FD.

The key features are:

  • Resource Overview for quick visualization and control of resource/board level information
  • Capture mode supports Chronological (Frame based) or  Sampling/Queuing (VL/UDP based) reception incl. recording to disk
  • Runtime Info node for global statistics, VL-Activity and Event-Log information
  • Send mode supports Generic Send list (Frame based), Sampling and Queuing (VL/UDP based) or Replay
  • TAP mode support for inline monitoring  of AFDX®/ARINC664P7 traffic (dependent on used interface board)
  • EDE Subscriber Simulation node (only for interfaces which include the Boeing specific extensions)
  • Optional Database Manager component PBA.pro-x-DBM for data conversion from raw data into Engineering Units
  • Fully scriptable using the optional PBA.pro-TSM component
  • Optional REROS function (ReRoutingSoftware: receive-modify-retransmit Frames)
  • Special Version for the AIM fdXTap available, with support for 4 Capture Only ports
  • Component can also be operated in a Standard Ethernet mode (Frame based send and receive)
Documents

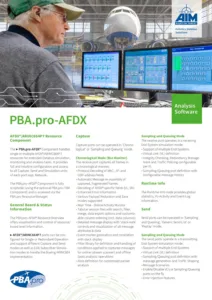

  • Data Sheet
Data Sheet
PBA.pro-AFDX
Download PBA.pro-AFDX 17-05-23 757.07 KB
Software
  • Windows
  • Linux
Windows
Latest Version
Linux
Related Products
PBA.pro-x-DBM
PBA.pro-x-DBM

Database Manager Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
PBA.pro-SCR-SW-TEST
PBA.pro-SCR-SW-TEST

ARINC664 Switch - Compliance Tests

See details
PBA.pro-SCR-ES-TEST
PBA.pro-SCR-ES-TEST

ARINC664 End System - Compliance Tests

See details
ACC-FDX-3U-2/B
ACC-FDX-3U-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 CPCI (3U) Module

See details
APE-FDX-2/B
APE-FDX-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 PCIe Module

See details
fdXTap
fdXTap

USB based 10/100MBit/s AFDX®/ARINC664P7 Network Tap & Monitor

See details
APU-FDX-2/B
APU-FDX-2/B

2 Port 10/100MBit/s AFDX®/ARINC664P7 USB Module

See details

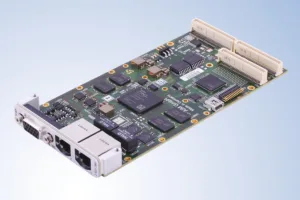

AMCX-FDX-2/B
AMCX-FDX-2/B

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 PMC Module

See details

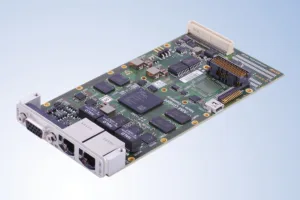

AXC-FDX-2/B
