PBA.pro-SCR-SW-TEST

The PBA.pro-SCR-SW-TEST Scripting Package supports the compliance testing of ARINC664 Switches in accordance with the ARINC664 Specification Part 7, Chapter 4.0 .

  • Specifications
  • Documents
  • Related Products
  • Contact
Specifications

This package requires the use of AIM’s AFDX®/ARINC664P7 test and simulation cards and the PBA.pro Databus Test and Analysis Software (for details see the ‘Related Products’ tab). The package comprises the dedicated Test Requirements, Test Plan documents for testing of ARINC664 Switches. The UUT requires a set of predefined configurations which are specified in the Test Plan.

The Test Requirements and Test Plan has been developed by AIM against the ARINC664 Part 7 specification ‘Chapter 4.0 SWITCH SPECIFICATION’ for full back traceability of the performed tests.
The compliance tests are implemented via 59 different test cases, which are executed and organized under the PBA.pro-TSM Test and Script Manager which also supports automatic test report generation.

For coverage of the required data loading tests the AIM EasyLoad615A software is required.

The script package is written in Python scripting language.

This package is not available per download.

Please contact us via the AIM Contact Form or your local sales representative for further information.

Documents
  • White Paper

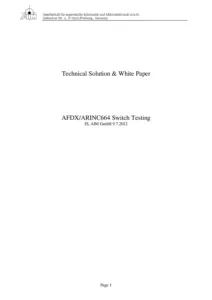

White Paper
ARINC664 Switch Testing

ARINC664 Switch Testing Solutions

Related Products
PBA.pro-AFDX®/ARINC664P7
PBA.pro-AFDX®/ARINC664P7

AFDX®/ARINC664P7 Resource Component

See details
PBA.pro-FD/-FD-NET/-FD-CLIENT
PBA.pro-FD/-FD-NET/-FD-CLIENT

Framework and Designer Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
EasyLOAD-615A
EasyLOAD-615A

ARINC615A Data Loading Software

See details
