APXX429-x

4, 8, 16, 32 Channel ARINC429 Test and Simulation Module for PCI

  • Overview
  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Overview

General Features

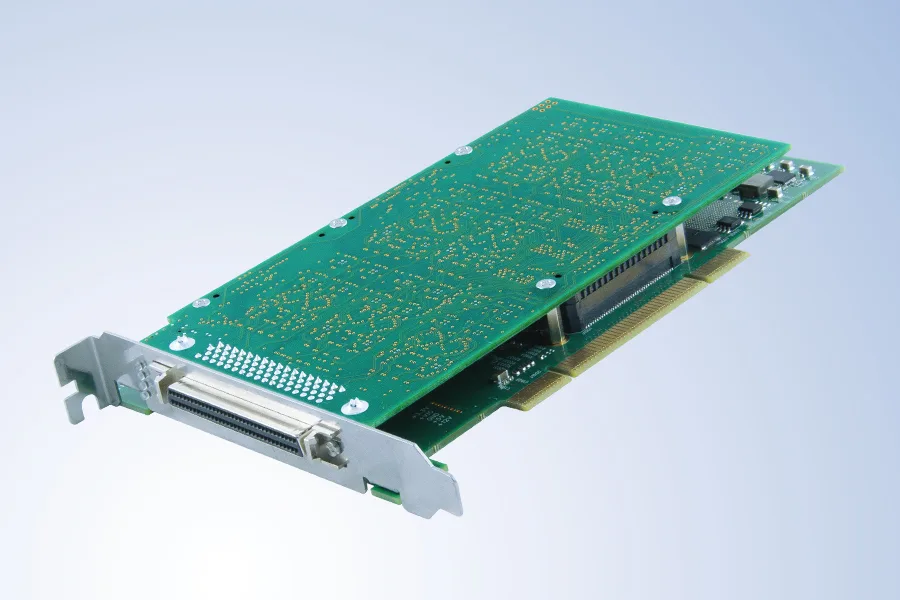

The APXX429-x is a member of AIM’s new family of PCI modules for analyzing, simulating, monitoring and testing ARINC429 channels providing up to 32 channels on a short length PCI standard module format.

  • All channels software programmable for various Receive (Rx) or Transmit (Tx) modes incl. a Loop Pollution mode (link between Rx and Tx channel)
  • Depending on the board variant transmit channels provide variable or fixed output amplitudes
  • APXX429-4 and APXX429-8 versions provide separate Transmit (Tx) and Receive (Rx) pins on all channels and are pin compatible to previous generation
  • Capability to handle 8 General Purpose Discrete I/O (GPIO) signals which can be monitored or controlled. For access of Discrete I/O’s an optional breakout cable can be supplied occupying a slot bracket position of the PC

Common Core Hardware Design
The APXX429-x modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors (Bus Interface Units) to support ARINC429 bus protocol handling for precise scheduling of simulated messages in different transmit modes, timestamping of received messages with 1µs resolution as well as a loop mode (Rx-Tx link) with software configurable message data pollution performed in real time and with minimal latencies and respecting the Rx bus timing.

Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for ARINC429 protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.

Board Software Package – Optional Analyzer Software
Full function driver software is delivered with the APXX429-x cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems. The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with APXX429-x modules.

ARINC429 Functionality on further Form Factors

ARINC 429 PCI ARINC 429 PCIe ARINC 429 PMC
ARINC 429 XMC ARINC 429 PXI ARINC 429 PXIe
ARINC 429 CPCI ARINC 429 CPCIe ARINC 429 Ethernet
ARINC 429 USB ARINC 429 VME
Specifications

ARINC429 Test and Simulation bus interface with 4, 8, 16 or 32 Software programmable Tx/Rx channels plus up to 8 Discrete I/O’s.

  • Full Performance on all ARINC429 channels concurrently and programmable for High/Low Speed Bit rates
  • Full Error Injection/Detection
  • Cyclic/Acyclic/FIFO Transmitter operation
  • Loop/Pollution mode (Receive-Modify-ReTransmit)
  • Label Selective Trigger for Capture and Filtering
  • 100% Real Time Recording and Syncronized Replay of all ARINC429 channels concurrently
  • IRIG-B Time Encoder/Decoder
  • Drivers for Linux and Windows (including LabView VIs)
  • Optional Databus Test and Analysis Software
Documents

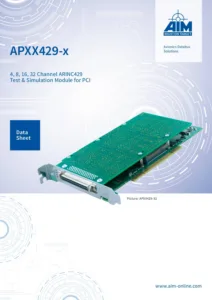

  • Data Sheet
  • Release Notes

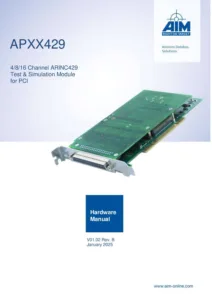

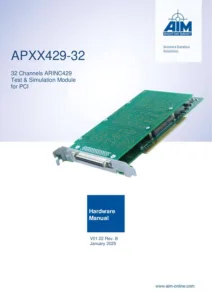

  • User Manuals
  • Tutorials
Software
  • Windows
  • Linux
Accessories
ACB-AMC-32

Ready Made Adapter Cable (2.0 m): SCSI68 (latched type) to 2x D-Sub37 (female) for ARINC429 and 1x D-Sub15 (female) for IRIG-B and Trigger Out for AIM ARINC429 32-Channel cards.

ACB-AMC-32 Pin-Out:
154.74 KB
BOC-APE

The BOC-APE is a breakout cable for Discrete I/O and IRIG I/O signals of  compatible AIM APE cards. The BOC-APE is connected via a dedicated (internal) board-to-board connector and routes the corresponding signals to a separate slot bracket.

BOC-APE Pin-Out:
77.09 KB
Related Products
PBA.pro-ARINC429
PBA.pro-ARINC429

ARINC429 Resource Component

See details
PBA.pro-FD
PBA.pro-FD

Framework and Designer Component

See details
PBA.pro-x-DBM
PBA.pro-x-DBM

Database Manager Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
PBA.pro-UA
PBA.pro-UA

User Administration Component

See details
PBA.pro-Light
PBA.pro-Light

Easy to use Protocol/Network Analyser

See details
