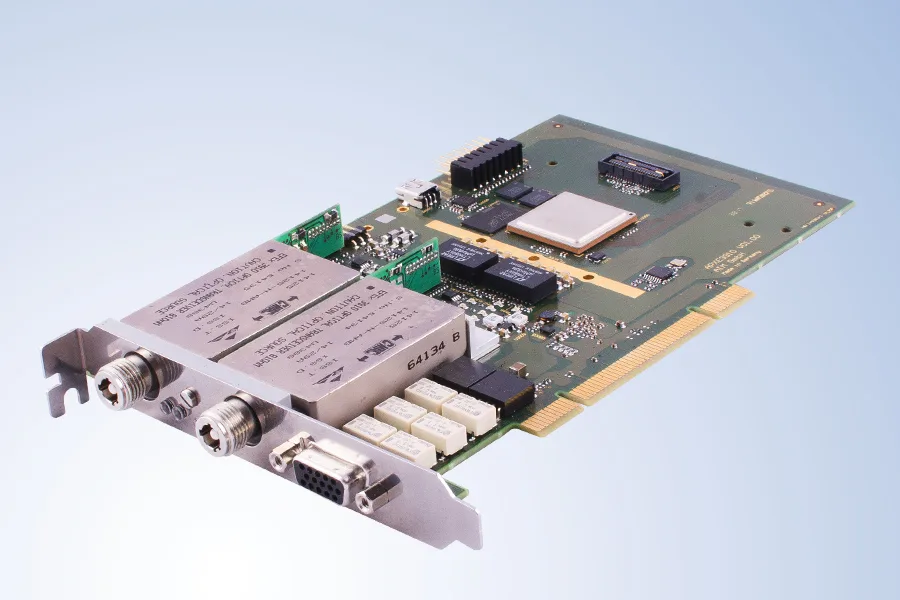

The APXX3910 is a member of AIM’s new family of PCI modules for analyzing, simulating, monitoring and testing STANAG3910/EFAbus Express (EFEX) databuses providing 1 fully dual redundant STANAG3910 high speed and low speed interface on a ‘Short Length PCI’ standard module format.
- Concurrently acts as Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor
- EFAbus Express (EFEX) extensions to the STANAG3910 protocol are fully supported
- Physical Replay capability- electrically/optically reconstruct and replay previously recorded STANAG3910/EFEX record files physically to the STANAG3910/EFEX bus with excellent timing accuracy
- The HS section of the APXX3910 supports EFAbus Direct Digital Links (DDL) and Fibre Optic DDL (FODDL) acquisition
- Versions with reduced functionality (Single Function or Simulator Only) are available
- Capability to handle 8 General Purpose Discrete I/O (GPIO) signals which can be monitored or controlled.
For access of all Discrete I/O’s an optional breakout cable can be supplied occupying a slot bracket position of the PC
Common Core Hardware Design
The APXX3910 module uses AIM’s ‘Common Core’ hardware design utilizing SoC (System-on-Chip) based hardware design with 2 dual core processing units. One dual core section is implementing the STANAG3838 and STANAG3910 Bus Interface Units (BIUs). On the second dual core section the Application Support Processor (ASP) is implemented under Linux OS and executes the driver software onboard and minimizes the load on the host processing system.
Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for STANAG3910/EFEX protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.
Board Software Package – Optional Analyzer Software / Test Plan Software
Full function driver software is delivered with the APXX3910 card in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with APXX3910 module. For supporting Protocol Testing of EFA Test Plans please contact the factory.
STANAG3910 Functionality on further Form Factors
STANAG3910 PCI | STANAG3910 PCIe | STANAG3910 PXIe |
STANAG3910 CPCIe | STANAG3910 Ethernet | STANAG3910 XMC |
STANAG3910/EFEX Test and Simulation module for PCI with 1 dual redundant HS/LS channel and onboard
Fibre Optic Front End (FOFE).
Easily select between EFAbus and EFEX modes for Tranche II Eurofighter. The APXX3910 is a functional replacement
for model APX3910.
- Concurrent HS/LS BC, Multi RT (31) and Chronological Monitor
- Full HS/LS Error Injection/Detection
- HS/LS Complex Triggering, Data Capture/Filtering, 100% HS/LS Bus Recording
- HS/LS Physical Bus Replay
- IRIG-B Time Encoder/Decoder
- Full Function, Monitor Only and Simulator Only versions available
- Drivers for Linux and Windows
- Optional Databus Test and Analysis Software
- HS section supports EFAbus DDL’s and FODDL

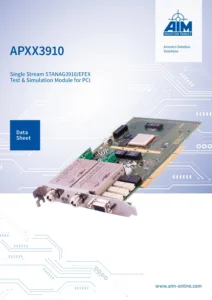

- Data Sheet
- Release Notes

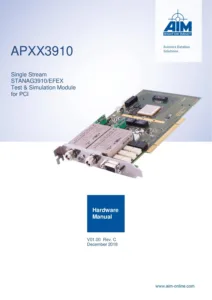

- User Manuals
- Windows
- Linux
ACB3910-HD15
Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to two Twinax Connectors PL-75 and 15-pin D-Sub Connector for Trigger I/O, IRIG-B and Discrete I/Os
