ACXX1553-3U-x-DS

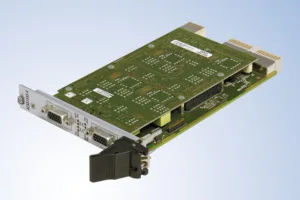

Single or Dual Stream MIL-STD-1553A/B Test & Simulation Modules for CompactPCI/PXI (3U) with the option for MILScope™ capability



  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Specifications

A unique feature of AIM’s ACXX1553-3U-x-DS module is the option for the MILScopeā„¢ capability.

Models ACXX1553-3U-1/2-DS integrate an onboard Analogue to Digital Convertor (ADC) which samples, measures and stores the
MIL-STD-1553 waveform. Automatic waveform validation is performed by the users Application Software or in conjunction with AIM’s PBA.pro Databus Test & Analysis Software.

  • Concurrent BC, MRT (31) & Chronological Monitor
  • Full Error Injection/Detection (AS4112)
  • Complex Triggering, Data Capture/Filtering, 100% Bus Recording, Physical Bus Replay
  • IRIG-B Time Encoder/Decoder
  • PXI Triggering and PXI System Clock Capabilities
  • Full Function, Single Function & Simulator Only versions available
  • Drivers for 32/64-bit Linux and 32/64-bit Windows
  • Optional Databus Test & Analysis Software & RT Production Test Plan
Documents

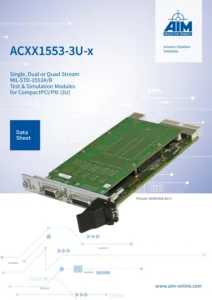

  • Data Sheet
  • Release Notes

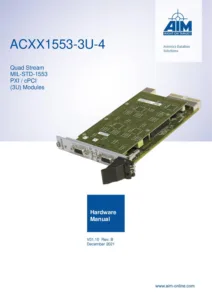

  • User Manuals
  • Tutorials
Software
  • Windows
  • Linux
Windows
Linux
Accessories
ACB-PCI-1

Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to two Twinax Connectors PL-75

ACB-PCI-2

Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to four Twinax Connectors PL-75

ACB-HD15-2

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75

ACB-HD15-2-F

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75 and 9-pin D-Sub Connector for Trigger I/O and IRIG-B

Related Products
PBA.pro-MIL
PBA.pro-MIL

MIL-STD-1553 Resource Component

See details
PBA.pro-FD/-FD-NET/-FD-CLIENT
PBA.pro-FD/-FD-NET/-FD-CLIENT

Framework and Designer Component

See details
PBA.pro-x-DBM
PBA.pro-x-DBM

Database Manager Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
PBA.pro-UA
PBA.pro-UA

User Administration Component

See details
PBA.pro-SCR-PTP-E
PBA.pro-SCR-PTP-E

RT Production Test Plan - Electric Waveform Tests

See details
PBA.pro-SCR-PTP-P
PBA.pro-SCR-PTP-P

RT Production Test Plan - Protocol Tests

See details
PBA.pro-SCR-VTP-P
PBA.pro-SCR-VTP-P

RT Validation Test Plan - Protocol Tests

See details
