ASC3910

General Features

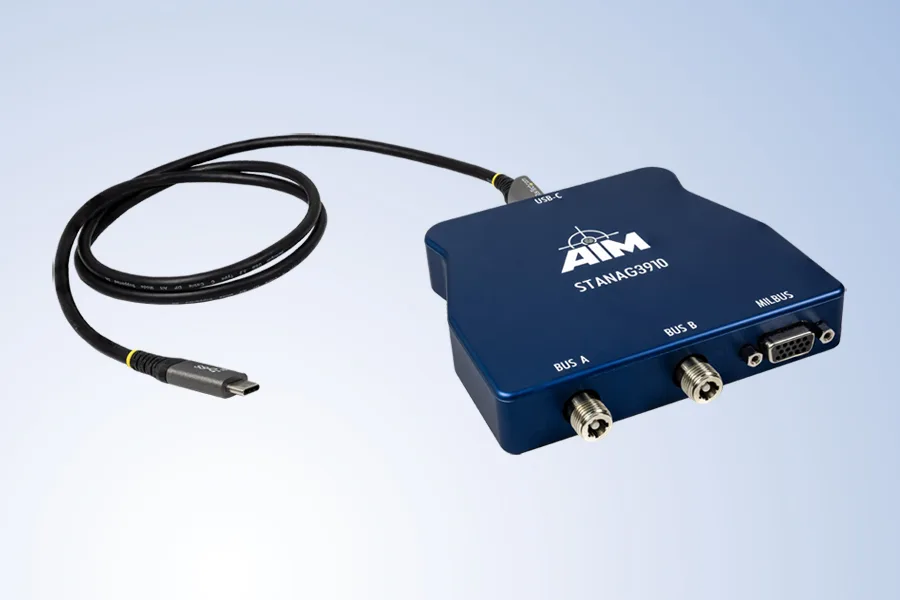

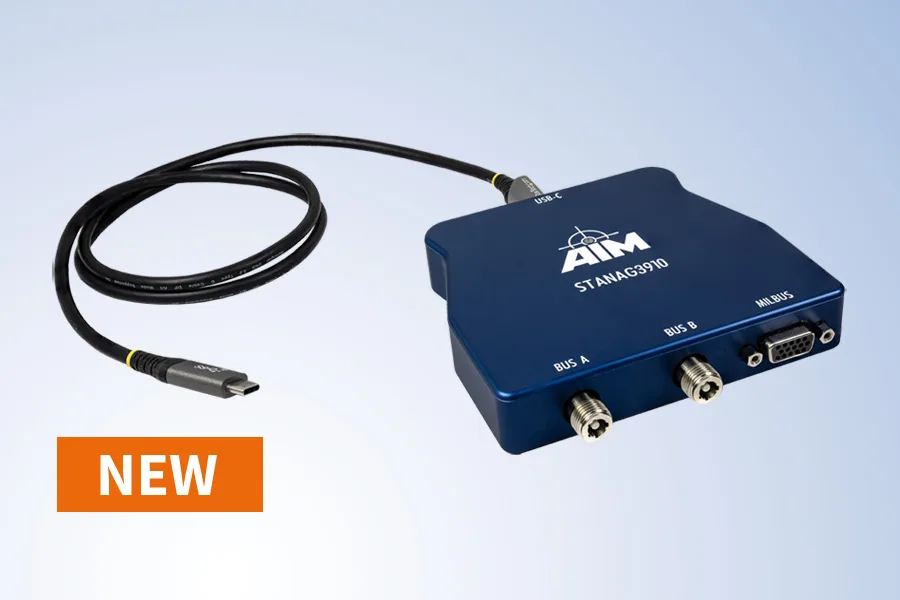

The ASC3910 (AIM SmartCable™) USB module offers full function test, simulation, monitoring and recording for STANAG3910/ EFAbus Express (EFEX) applications in a compact form factor.

• Concurrently acts as Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor
• EFAbus Express (EFEX) extensions to the STANAG3910 protocol are fully supported
• Physical Replay capability- electrically/optically reconstruct and replay previously recorded STANAG3910/EFEX record files physically to the STANAG3910/EFEX bus with excellent timing accuracy
• The HS section of the ASC3910 supports simulation and acquisition of EFAbus Fibre Optic Direct Digital Links (FODDL)
• ASC3910 modules are powered from the host computer via a single USB-C connection – no external power adapter is required
• Embedded in a connector housing, the ASC3910 module also includes 3 Open/Ground Avionics Level (+35V) discrete I/O signals to be monitored or generated

Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for STANAG3910/EFEX protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.

Board Software Package – Optional Analyzer Software / Test Plan Software
Full function driver software is delivered with the ASC3910 card in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with ASC3910 modules.

STANAG3910 Functionality on further Form Factors

STANAG3910/EFEX Test and Simulation USB module with 1 dual redundant HS/LS channel and onboard
Fibre Optic Front End (FOFE). Easily select between EFAbus and EFEX modes for Tranche II Eurofighter.

• Robust and Low Power USB3.1 module implementing a single stream, dual redundant STANAG3910 high speed  and low speed interface
• Concurrent HS/LS BC, Multi RT (31) and Chronological Monitor
• Full HS/LS Error Injection/Detection
• HS/LS Complex Triggering, Data Capture/Filtering, 100% HS/LS Bus Recording
• HS/LS Physical Bus Replay
• IRIG-B Time Encoder/Decoder
• HS section supports EFAbus DDL’s and FODDL
• Drivers for Linux and Windows
• Optional Databus Test and Analysis Software
• Optional STANAG3910 API Programming Training and Video Tutorial
