General Features
To complement the wide range of interface modules for dedicated Avionics Databuses and Networks, AIM offers a range of Carrier modules for the use of AIM or any 3rd Party PMC and XMC module on various backplanes.

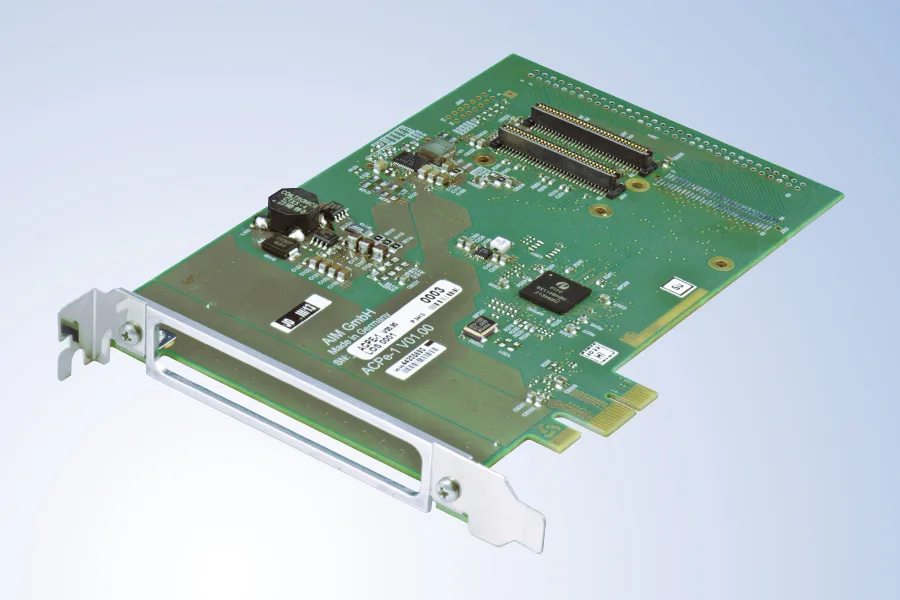

The ACPe-1 is a standard height, half-length, single lane PCI Express add-in card with one PMC slot to plug in a standard PMC module.
- Fulfills the requirements of the PCI Express base specification Revision 1.0a on the primary side and the PCIbus specification Revision 3.0 on the secondary side
- The PMC slot is in conformance with the draft standard physical and environmental layers for PCI mezzanine cards (P1386.1/Draft 2.4)
- Designed to plug in all standard PMC modules with a maximum PCIbus width of 32-bit and a PCIbus operation up to 66MHz
- On secondary PCIbus side the PMC slot is configured to support +3.3V, I/O signalling voltage for use with +3.3V PMC modules, for +5.0V PMC modules the carrier is identified by a different part number
- Easily configured with any AIM PMC databus module: AFDX®/ARINC664P7, ARINC429, MIL-STD-1553, ARINC825 or any standard 3rd party PMC module
Carrier Functionality on further Form Factors
PMC-to-PCI | PMC/XMC-to-PCIe | PMC-to-CPCI-3U |
PMC-to-VME | XMC-to-CPCIe-3U |
PCI-Express generic carrier card for PMC (PCIbus mezzanine card) modules with 1 PMC slot. Modular solution combines any AIM PMC module for AFDX®/ARINC664P7, ARINC429, MIL-STD-1553 or any standard 3rd party PMC module.
- Up to 66MHz PCIbus operation for +3.3V environments
- Default configuration is 32-bit @33MHz
- Up to 66MHz PCIbus operation for +3.3V environments
- Fully compliant to PCI-Express Specification, Rev. 1.0a
- Fully compliant to PCI Specification, Rev. 3.0
- Hosts PMC interface designed to PMC standard P1386.1/Draft 2.4
- Onboard +5VDC Power Supply (up to 10W) and -12VDC Power Supply (up to 12W, used for AMC429) are provided

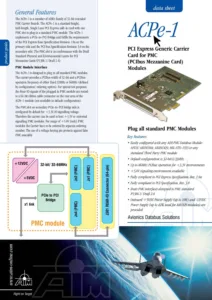

- Data Sheet

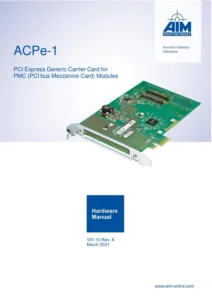

- User Manuals
