ACCx-1
Compact PCI Express (3U) Generic Carrier Card
for XMC (ANSI/VITA 42.3 Mezzanine Card) Modules
- Overview
- Specifications
- Documents
- Related Products
- Contact
General Features
To complement the wide range of interface modules for dedicated Avionics Databuses and Networks, AIM offers a range of Carrier modules for the use of AIM or any 3rd Party PMC and XMC module on various backplanes.

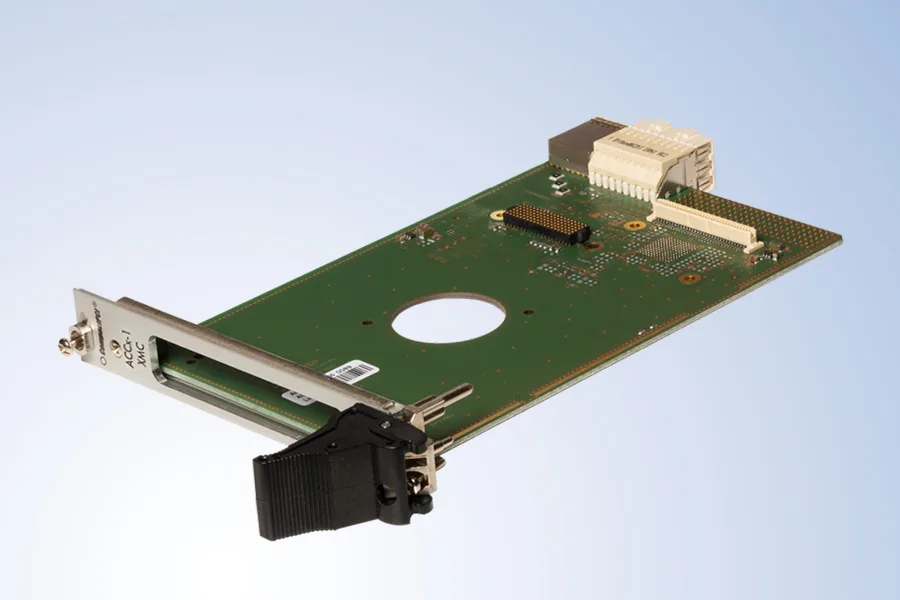

The ACCx-1 is a single slot, single height (3U) Compact PCI Express module with one XMC mezzanine card slot to plug in a standard XMC module.
- Fulfills the requirements of the CompactPCI Express specification as well as the requirements of the PCI Express standard
- The XMC slot is in conformance with the ANSI/VITA 42.x standard physical and environmental layers for switched fabric mezzanine card compliant with ANSI/VITA mezzanine card standard
- Is designed to plug all standard VITA 42.3 XMC modules and support bus operation of up to 5GBit/s
- Easily configured with any AIM XMC Databus Module: AFDX®/ARINC664P7, ARINC429, MIL-STD-1553 or any standard 3rd party VITA 42.3. compliant XMC Module
Carrier Functionality on further Form Factors
PMC-to-PCI | PMC/XMC-to-PCIe | PMC-to-CPCI-3U |
PMC-to-VME | XMC-to-CPCIe-3U |
Compact PCI Express generic carrier card for XMC (Switched Fabric Mezzanine Card) with 1 XMC slot. Modular solution combines any AIM XMC module for AFDX®/ARINC664P7, ARINC429, MIL-STD-1553 or any standard 3rd party, VITA 42.3 compliant XMC module.
- Gen 2 PCI Express Bus Operation of 5GB/s Data Rate
- 3U Compact PCI Form Factor
- Fully compliant to Compact PCI Express Specification (Release 2.0)
- XMC standard for VITA 42.0 and 42.3-2006

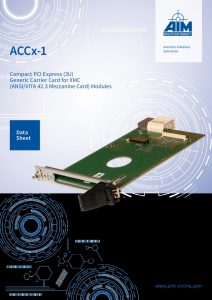

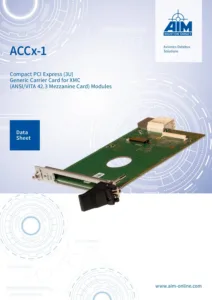

- Data Sheet

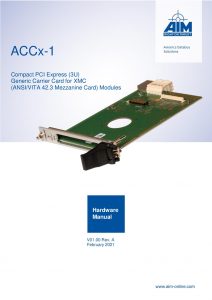

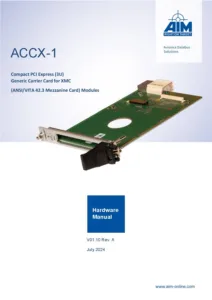

- User Manuals
