ACP-1

PCI Generic Carrier Card
for PMC (PCIbus Mezzanine Card) Modules

  • Overview
  • Specifications
  • Documents
  • Related Products
  • Contact
Overview

General Features

To complement the wide range of interface modules for dedicated Avionics Databuses and Networks, AIM offers a range of Carrier modules for the use of AIM or any 3rd Party PMC and XMC module on various backplanes.

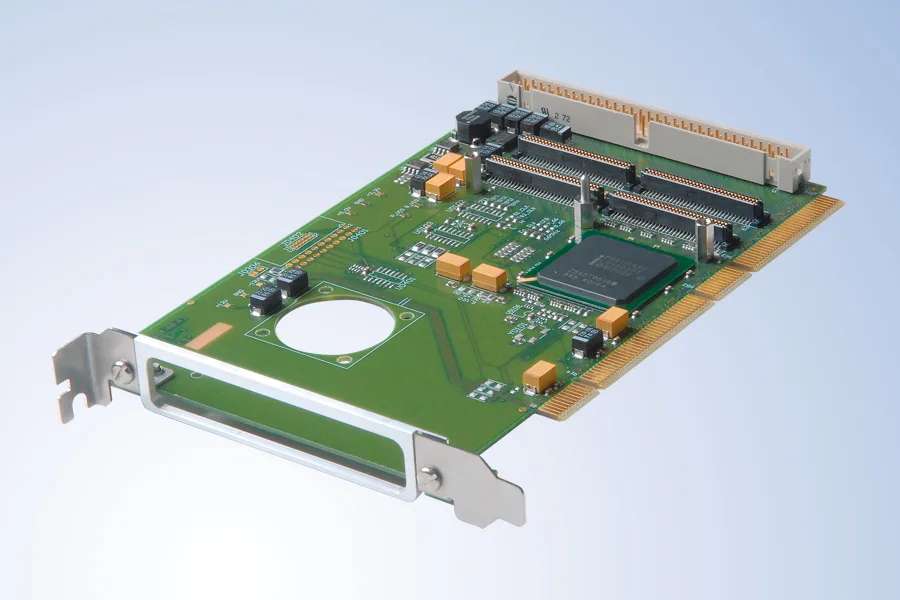

The ACP-1 is a ‘Short Length PCI’ module format with one PMC slot to plug in a standard PMC module

  • Fulfills the requirements of the PCIbus specification Revision 2.3, for both the primary and secondary side
  • The PMC slot is in conformance with the draft standard physical and environmental layers for PCI mezzanine cards (P1386.1/Draft 2.4)
  • Designed to plug all standard PMC modules with a maximum PCIbus width of 64-bit and a PCIbus operation up to 66MHz
  • The board is of universal I/O signalling voltage type and can be plugged in either a +3.3V or +5.0V PCI slot
  • On secondary PCIbus side the PMC slot is configured to support +3.3V, I/O signalling voltage for use with +3.3V PMC modules, for +5.0V PMC modules the carrier is identified by a different part number
  • Easily configured with any AIM PMC databus module: AFDX®/ARINC664P7, ARINC429, MIL-STD-1553, ARINC825 or any standard 3rd party PMC module

Carrier Functionality on further Form Factors

PMC-to-PCI PMC/XMC-to-PCIe PMC-to-CPCI-3U
PMC-to-VME XMC-to-CPCIe-3U
Specifications

PCI generic carrier card for PMC (PCIbus mezzanine card) with 1 PMC slot. Modular solution combines any AIM PMC module for AFDX®/ARINC664P7, ARINC429, MIL-STD-1553 or any standard 3rd party PMC module.

  • Up to 66MHz operation for +3.3V environments
  • 64-bit PCI bus extension
  • Fully compliant to PCI Specification, Rev. 2.3
  • Hosts PMC interface designed to PMC standard P1386.1/draft 2.4
  • Onboard ribbon cable connector provided for access to the PMC Rear I/O signals (P14)
  • Onboard -12VDC supply (up to 10W) to support ARINC429 transmitters
Documents

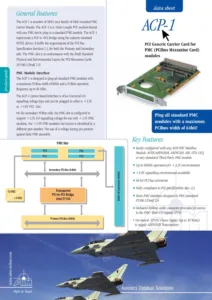

  • Data Sheet
  • User Manuals
Data Sheet
ACP-1
Download ACP-1 10-11-24 560.93 KB
User Manuals

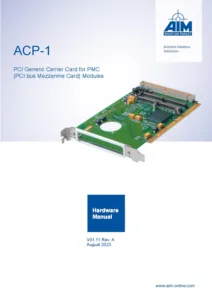

ACP-1 Hardware Manual
V01.11 Rev A 1.42 MB
Related Products
AMCX1553-x
AMCX1553-x

1, 2, 4 Stream MIL-STD-1553 PMC Module

See details
AMCX1553-xT
AMCX1553-xT

1, 2 Stream MIL-STD-1553 PMC Module, prog. Coupling...

See details
AMCX429-x
AMCX429-x

8, 16, 32 Channel ARINC429 PMC Module

See details
AMCX-FDX-2
AMCX-FDX-2

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 PMC Module

See details
AMC825-4
AMC825-4

4 Node ARINC825 PMC Module

See details
