PBA.pro-ARINC825

The PBA.pro-ARINC825 component handles single or multiple ARINC825 resources providing access to all Transmitter, Receiver and Chronological Bus Monitor functions incl. payload decoding support.

  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Specifications
  • For ARINC825 Protocol and Payload Analysers this component is required.

The component provides full and intuitive configuration and access to all Capture and Simulation functions of each ARINC825/CAN network and is accessed via the PBA.pro Resource Manager of the PBA.pro-FD.

The key features are:

  • Resource Overview for quick visualization and control of resource/board level information
  • Global statistics information window and Event-Log information
  • Capture mode supports ID reception and bus event logging, online data and activity display, timestamping and recording to disk
  • Capture Filters on specific message types and IDs
  • Send mode supports scheduled transmission of IDs and online data modification
  • Customisable ID structuring
  • Data conversion from raw data into Engineering Units included
  • Fully scriptable using the optional PBA.pro-TSM component
  • Component can also be used with AIM Hardware connected to CAN 2.0B networks





Documents
  • Release Notes

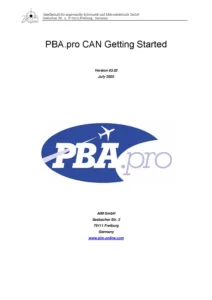

  • User Manuals
  • Video
Software
  • Windows
  • Linux
Windows
Linux
Related Products
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
ACP825-4
ACP825-4

4 Node ARINC825 PCI Module

See details

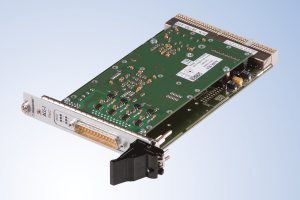

ACC825-3U-4
ACC825-3U-4

4 Node ARINC825 CPCI Module

See details

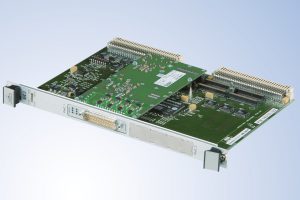

AVC825-x
AVC825-x

4, 8 Node ARINC825 VME Module

See details

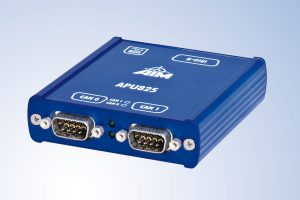

APU825-2
APU825-2

2 Node ARINC825 USB 2.0 Module

See details
AMC825-4
AMC825-4

4 Node ARINC825 PMC Module

See details

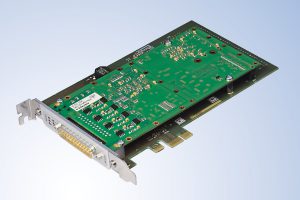

ACPe825-4
ACPe825-4

4 Node ARINC825 PCIe Module

See details
