AVC825-x

ARINC825 (CAN bus) Test & Simulation Module
for VME with 4, 6 or 8 CAN bus Nodes

  • Overview
  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Overview

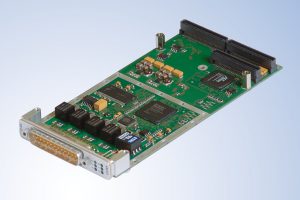

Integrated modular solution by using the AMC825-x PMC cards installed on AIM’s AVC-2 Generic carrier card for VME.

The AVC825-x VME card can work either with full functionality as an active CAN node for testing and simulating or in listening-only mode for monitoring and recording purposes of Avionic CAN bus (ARINC825) applications on up to 4 electrically isolated CAN bus nodes concurrently.

  • All nodes are in conformance with the ISO11898-1/-2 standard
  • Accessible by software separately and can be used as 4 independent CAN bus nodes
  • Object and FIFO modes available to support different application scopes
  • Consists of FPGA based CAN interface controllers as well as a FPGA based 32-bit microcontroller core and a separate processor for IRIG-B synchronization with 1µs resolution time stamping
  • All nodes are operating concurrently at software configurable CAN bus speeds from 10kbit/s up to high speed bit rate of 1Mbit/s with the intelligence to process transmit scheduling of CAN frames in real time autonomously to significantly off-load the host processor
  • Using AIM’s family of PCIe, PCI, CPCI (3U) and VMEbus carrier cards for PMC our clients have off the shelf solutions in a broad range of card formats

Onboard IRIG-B Time Synchronization
AVC825-x cards have an onboard IRIG-B time decoder with 1µs resolution and an automatic free-wheeling detection. This allows synchronization of multiple AVC825-x cards to one common IRIG-B time source for the correlation of data across multiple ARINC825 CAN bus nodes.

Board Software Package – Optional Analyzer Software
The AVC825-x modules are supplied with an Application Programming Interface (API) and Driver Software compatible with Windows, Linux and VxWorks.
The AVC825-x module operates with the optional PBA.pro™ Databus Test and Analysis Tool for Windows and Linux.

ARINC825 Functionality on further Form Factors

ARINC825 PCI ARINC825 PCIe ARINC825 CPCI
ARINC825 USB ARINC825 PMC ARINC825 VME
Specifications

ARINC825 (CAN bus) Test & Simulation Module for VME with 4, 6 or 8 electrically isolated CAN bus nodes operating concurrently at CAN bus high speed bit rate of up to 1Mbit/s.
The AVC825-x VME card can work either with full functionality as an active CAN node for testing and simulating or in Listening Only mode for monitoring and recording purposes.

  • Object and FIFO Transmit/Receive modes or Listening-Only mode for passive monitoring
  • Data Buffering with Real Time Data Updates
  • Scheduled and Acyclic Transmission of IDs
  • ID oriented dependent filtering
  • Time Stamping of received frames with IRIG-B Time
  • Physical Error Detection, Bit Error, CRC-/Format Error, Bit Stuffing Error
  • Physical Error Injection
  • Driver Software included for VxWorks
  • Optional Databus Test & Analysis Software
Documents
  • Data Sheet
  • User Manuals
Data Sheet
User Manuals
AMC825 Hardware Manual
V01.01. Rev.A 644.39 KB
AVC-2 Hardware Manual
V01.20 Rev A 1.06 MB
Software
  • VxWorks Legacy
VxWorks Legacy
Latest Version
Related Products
AVC-2
AVC-2

VME Carrier Card with 2 PMC Slots

See details
AMC825-x
AMC825-x

2, 4 Node ARINC825 PMC Module

See details
