AVC-2

VME Generic Carrier Card for PMC
(PCIbus Mezzanine Card) Modules

  • Overview
  • Specifications
  • Documents
  • Related Products
  • Contact
Overview

General Features

To complement the wide range of interface modules for dedicated Avionics Databuses and Networks, AIM offers a range of Carrier modules for the use of AIM or any 3rd Party PMC and XMC module on various backplanes.

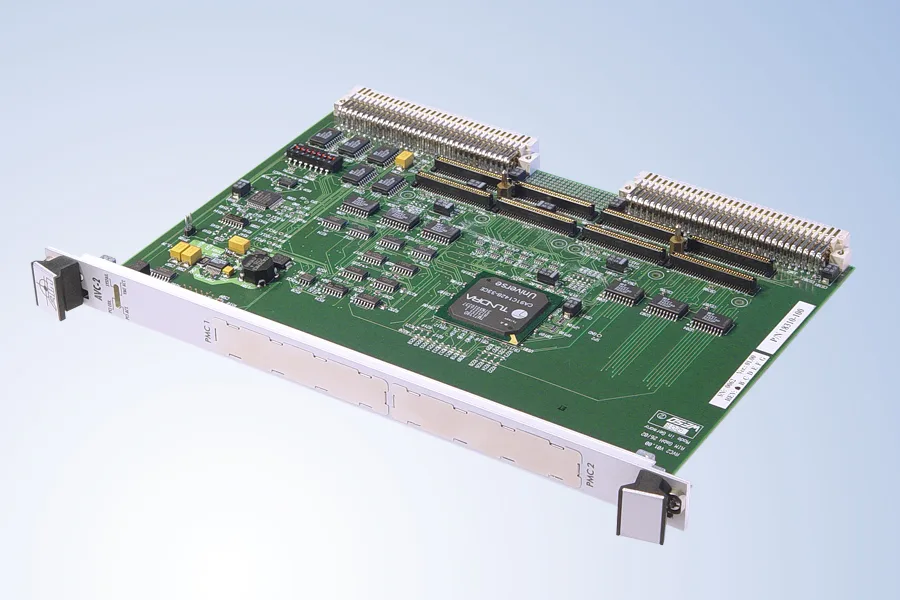

The AVC-2 is a single slot, double height (6U) VME64x, extended VMEbus module with two separate  PMC slots for air cooled PMC modules.

  • Fulfills the requirements of the VME64x extension plus the interface for Rear I/O
  • The PMC slot is in conformance with the draft standard physical and environmental layers for PCI mezzanine cards (P1386.1/Draft 2.4)
  • Combine different interface types and functions on one VME card
  • Easily configured with any AIM PMC databus module: AFDX®/ARINC664P7, ARINC429, MIL-STD-1553, ARINC825 or any standard 3rd party PMC module

Carrier Functionality on further Form Factors

PMC-to-PCI PMC/XMC-to-PCIe PMC-to-CPCI-3U
PMC-to-VME XMC-to-CPCIe-3U



Specifications

VME64x (6U) generic carrier card for PMC (PCIbus mezzanine card) with 2 PMC slots. Modular solution combines any AIM PMC module for AFDX®/ARINC664P7, ARINC429, MIL-STD-1553 or any standard 3rd party PMC module.

  • User configurable base address
  • Front panel LED’s for VMEbus/PCIbus activity/failure display (only provided @ air cooled variant)
  • Fully compliant to VME64x – extended VMEbus
  • Hosts PMC modules designed to PMC standard P1386.1/Draft 2.4
  • Includes C/C++ software support library source code
Documents

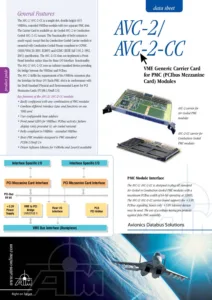

  • Data Sheet
  • User Manuals
Data Sheet
AVC-2
Download AVC-2 13-07-24 466.06 KB
User Manuals
AVC-2 Hardware Manual
V01.20 Rev A 1.06 MB
Related Products
AMCX1553-x
AMCX1553-x

1, 2, 4 Stream MIL-STD-1553 PMC Module

See details
AMCX1553-xT
AMCX1553-xT

1, 2 Stream MIL-STD-1553 PMC Module, prog. Coupling...

See details
AMCX429-x
AMCX429-x

8, 16, 32 Channel ARINC429 PMC Module

See details
AMCX-FDX-2
AMCX-FDX-2

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 PMC Module

See details
AMC825-4
AMC825-4

4 Node ARINC825 PMC Module

See details
