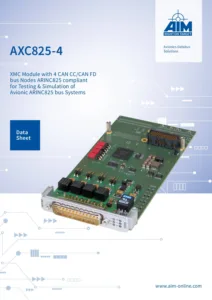

AXC825-4

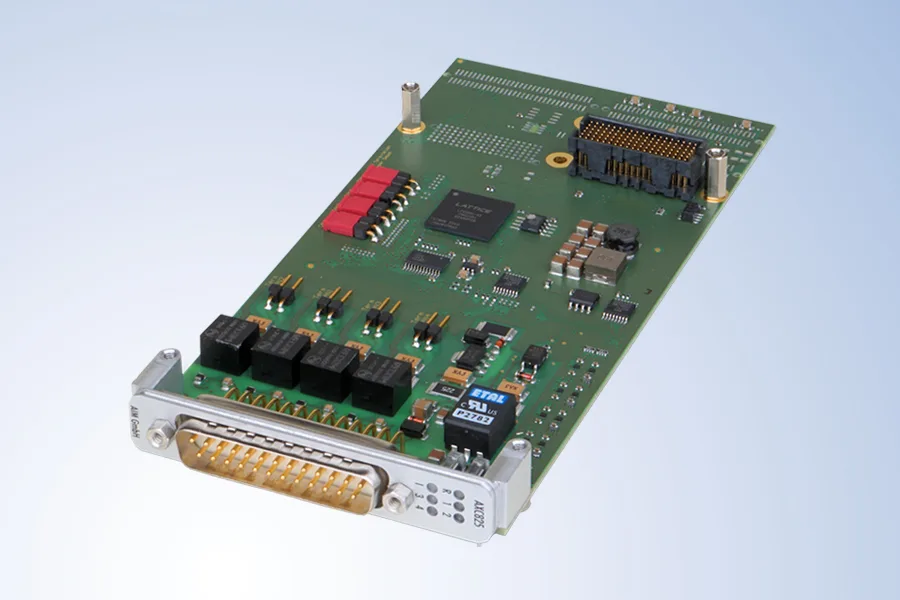

The AXC825-4 XMC Card can work either with full functionality as an active full functionality ARINC825/CAN (CC/FD) node for testing and simulating or in listening-only mode for monitoring and recording purposes of Avionic applications on up to 4 electrically isolated ARINC825/CAN (CC/FD) bus nodes concurrently.

• All nodes are in conformance with the ISO11898-1/-2 standard
• Accessible by software separately and can be used as 4 independent ARINC825/CAN (CC/FD) bus nodes
• Consists of FPGA based ARINC825/CAN (CC/FD) interface controllers and a separate processor for IRIG-B synchronization with high resolution time stamping
• All nodes are operating concurrently at CAN bus high speed rate of up to 1Mbit/s in CAN CC and up to 8Mbit/s in CAN FD with the intelligence to process scheduling of ARINC825/CAN (CC/FD) frames in real time onboard to significantly off-load the host processor

Onboard IRIG-B Time Synchronization
AXC825-4 modules have an onboard IRIG-B time decoder with 1µs resolution and an automatic free-wheeling detection. This allows synchronization of multiple AXC825-4 modules to one common IRIG-B time source for the correlation of data across multiple ARINC825/CAN (CC/FD) bus nodes.

Board Software Package – Optional Analyzer Software
The AXC825-4 modules are supplied with an Application Programming Interface (API) and Driver Software compatible with Windows and Linux.
The AXC825-4 module operates also with the optional PBA.pro™ Databus Test and Analysis Tool for Windows and Linux.

ARINC825 Functionality on further Form Factors

XMC module with 4 CAN CC/CAN FD bus nodes ARINC825 compliant for testing and simulation of Avionic ARINC825 bus systems.

• Object and FIFO Transmit/Receive modes or Listening Only mode for passive monitoring
• Data Buffering with Real Time Data Updates
• Scheduled and Acyclic Transmission of IDs
• ID oriented dependent filtering
• Time Stamping of received frames with IRIG-B Time Code
• Auto-Answer mode for automatic RTR frame handling
• Physical Error Detection, Bit Error, CRC-/Format Error, Bit Stuffing Error
• Driver Software included for Windows and Linux
• Optional Databus Test & Analysis Software
