ADock-4x

Docking Stations for AIM ANET Devices

  • Specifications
  • Documents
  • Accessories
  • Related Products
  • Contact
Specifications

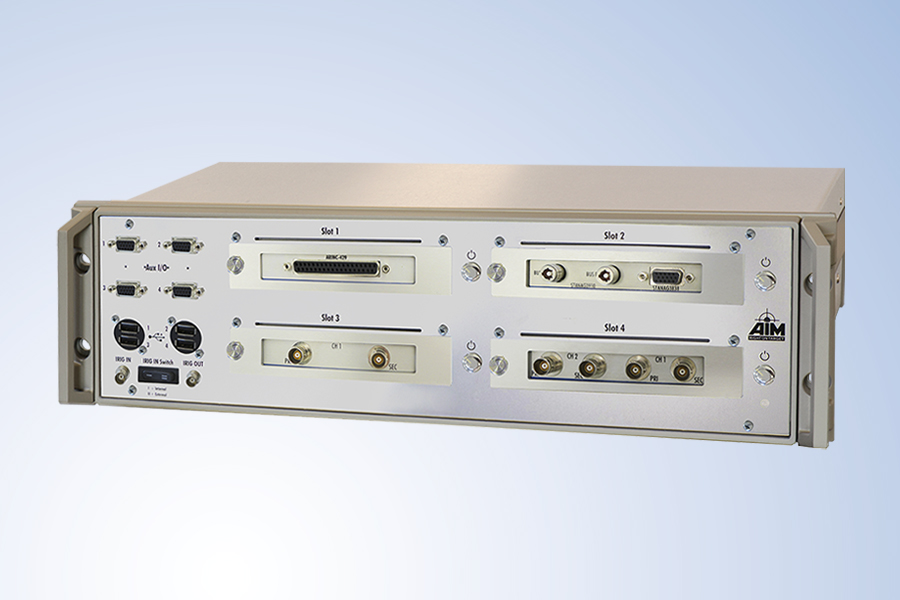

Aim Module Anet Dockable Rack 170820

The ADock-4x ANET Docking Stations offer the capability to host up to 4 AIM ANET Ethernet based data bus interface devices in a single housing.

  • 4 slots for any type of ANET devices with docking connector
    (‘-D’ option of related AIM ANET device)
  • Common power supply
  • 10/100/1000Base-T Ethernet Switch
  • Internal or external IRIG-B time synchronisation
  • Auxiliary I/O (Discretes, Trigger) and General Purpose USB port
  • Optional built-in WLAN router
  • Tower (ADock-4T) or 19″/3U Rackmount¬†(ADock-4R) variant available
  • Optional adapter ADock-1A for standalone use of dockable ANET devices
Documents
  • Data Sheet
  • User Manuals
  • White Paper
Data Sheet
ADock
Download ADock 20180226 315.92 KB
User Manuals

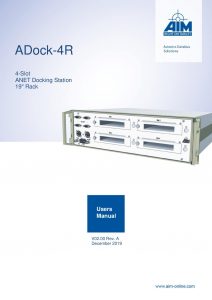

ADock-4R Users Manual
V01.00 Rev. A 939.45 KB
ADock-4T Users Manual
V01.00 Rev. A 1.12 MB
White Paper
ANET Functional Concept

Get an overview over the ANET functional concept and its features.

ANET Whitepaper

Learn more about the ANET added values.

Accessories
ADock-1A

ADock-1A

The ADock-1A is an accessory for dockable ANET devices. Typically the dockable ANETs are hosted in ADock-4x stations, however in order to support standalone use the ADock-1A acts as a breakout adapter from the ANET Dock connector to Standard ANET connectors.

Download 9.57 MB
Related Products
ANET1553-x
ANET1553-x

1, 2 Stream MIL-STD-1553 Ethernet Module

See details
ANET429-x
ANET429-x

4, 8, 16 Channel ARINC429 Ethernet Module

See details
ANET3910
ANET3910

1 Stream STANAG3910/EFEX Ethernet Module

See details
ANET-MxAy
ANET-MxAy

MIL-STD-1553/ARINC429 Mixed Protocol Ethernet Module

See details
