AVC1553-x

1, 2, 4 or 8 Stream MIL-STD-1553
Test and Simulation Module for VME (6U)

  • Overview
  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Overview

General Features

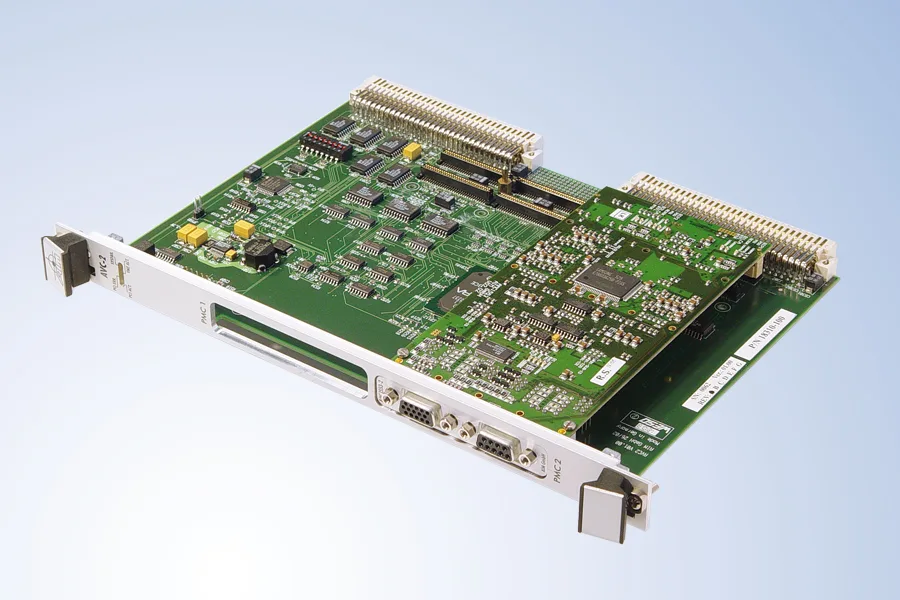

Integrated modular solution by using the AMCX1553-x PMC cards installed on AIM’s AVC-2 Generic VME64x (6U) carrier card.

The AMCX1553-x is a member of AIM’s next generation of PMC modules targeted to embedded MIL-STD-1553 applications. The AMCX1553-x offers full function test, simulation, monitoring and databus analyzer capabilities providing 1, 2 or 4 dual redundant bus streams.

  • Concurrently acts as Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor
  • Physical Replay capability- electrically reconstruct and replay previously recorded MIL-STD-1553A/B record files physically to the
    MIL-STD-1553A/B bus with excellent timing accuracy
  • Versions with reduced functionality (Single Function or Simulator Only) are available as well as extended temperature range variants
  • Capability to handle 8 General Purpose Discrete I/O (GPIO) signals which can be monitored or controlled
  • Designed to be installed on either a host carrier board to adapt to buses (like standard PCI/PCIe, VME/VPX, cPCI/cPCIe) or on an embedded host computer

Common Core Hardware Design
The AMCX1553-x modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors
(Bus Interface Units) to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.

Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for MIL-STD-1553 protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.

Board Software Package – Optional Analyzer Software/Test Plan Software
Full function driver software is delivered with the AMCX1553-x cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with AMCX1553-x modules. Off the shelf test scripts are available to support the automatic execution of the AS4112 RT Production Test Plan (Protocol and Electrical Tests) and the AS4111 RT Validation Test Plan (Protocol Tests).

MIL-STD-1553 Functionality on further Form Factors

1553 PCI 1553  PCIe 1553 PMC
1553 XMC  1553 PXI  1553 PXIe
1553 CPCI  1553 CPCIe  1553 PCIe Mini Card
 1553 USB  1553 VME 1553 Ethernet





Specifications

MIL-STD-1553 Test and Simulation module for VME (6U) with 1, 2, 4 or 8 dual redundant channels.
Integrated modular solution by using the AMCX1553-x PMC cards installed on AIM’s AVC-2 Generic VME64x (6U) Carrier card.

  • Concurrent BC, MRT (31) and Chronological Monitor
  • Full Error Injection/Detection (AS4112)
  • Complex Triggering, Data Capture/Filtering, 100% Bus Recording and Physical Bus Replay
  • IRIG-B Time Encoder/Decoder
  • AVC1553-1T/-2T versions available with programmable Bus Coupling, onboard Bus Network and variable Output amplitude
  • Full Function, Single Function and Simulator Only versions
  • Driver Software included: VxWorks
Documents

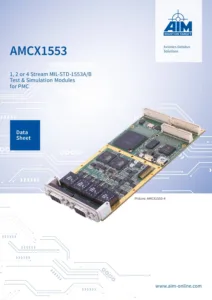

  • Data Sheet
  • Release Notes

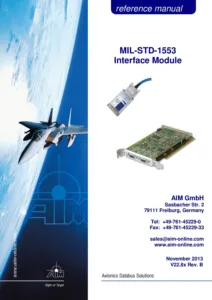

  • User Manuals
  • Tutorials
Software
  • VxWorks Legacy
VxWorks Legacy
Latest Version
Accessories
ACB-PCI-1

Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to two Twinax Connectors PL-75

ACB-PCI-1 Pin-Out:
6.96 KB
ACB-PCI-2

Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to four Twinax Connectors PL-75

ACB-PCI-2 Pin-Out:
Download 7.77 KB
ACB-HD15-1

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to two Twinax Connectors PL-75

ACB-HD15-1-F

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to two Twinax Connectors PL-75 and 9-pin D-Sub Connector for Trigger I/O and IRIG-B

ACB-HD15-1-F Pin-Out:
315.35 KB
ACB-HD15-2

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75

ACB-HD15-2-F

Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75 and 9-pin D-Sub Connector for Trigger I/O and IRIG-B

ACB-HD15-2-F Pin-Out:
321.01 KB
Related Products
AMCX1553-x
AMCX1553-x

1, 2, 4 Stream MIL-STD-1553 PMC Module

See details
AMCX1553-xT
AMCX1553-xT

1, 2 Stream MIL-STD-1553 PMC Module, prog. Coupling...

See details
AVC-2
AVC-2

VME Carrier Card with 2 PMC Slots

See details
