PBA.pro-FC

The PBA.pro-FC Component handles single or multiple Fibre Channel resources providing access to all Capture and Send ports with FC-2 Network Databus Analyser functions and optional Upper Layer Protocol (ULP) support.

  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Specifications
  • For Fibre Channel Layer 2 (FC-2) Network Analysers this component is required.

The component provides full and intuitive configuration and access to all Capture, Send and optional ULP Simulation functions of each Fibre Channel port and is accessed via the PBA.pro Resource Manager of the PBA.pro-FD.

The key features are:

  • Resource Overview for quick visualization and control of resource/board level information
  • NPort mode for simulation and testing of Fibre Channel communication in transmission and reception
  • Comfortable Fibre Channel Layer 2 and Upper Layer header and frame setup and configuration
  • TAP mode to passively monitor Fibre Channel frames
  • Chronological monitoring and Capturing with time stamping and recording to disk
  • Runtime Info for global statistics, counters and Event-Log information
  • Optional Database Manager component PBA.pro-x-DBM for data conversion from raw data into Engineering Units and Upper Layer Protocol (ULP) support
  • Fully scriptable using the optional PBA.pro-TSM component
  • Upper Layer Protocol options for FC-AE-RDMA, FC-AV/ ARINC818, FC-AE-ASM
Documents

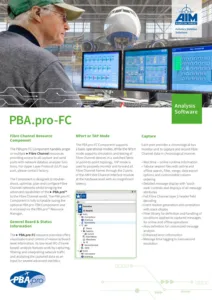

  • Data Sheet
Data Sheet
PBA.pro-FC
Download PBA.pro-FC 18-02-22 273.05 KB
Software
  • Windows
  • Linux
Windows
Latest Version
Linux
Related Products

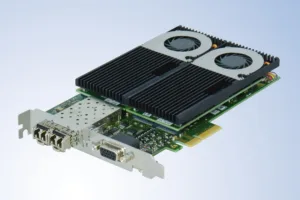

APS-FC-2
APS-FC-2

2 Port Fibre Channel PCIe Module

See details
APS818-x
APS818-x

2 Port ARINC818 PCIe Module

See details
PBA.pro-x-DBM
PBA.pro-x-DBM

Database Manager Component

See details
PBA.pro-TSM
PBA.pro-TSM

Test and Script Manager Component

See details
