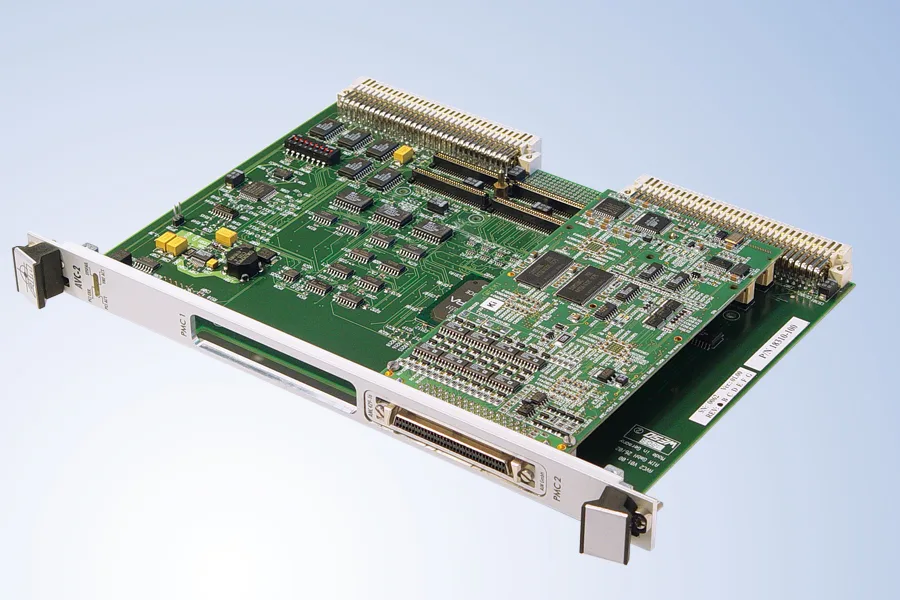

AVC429-x

4, 8, 16 or 32 Channel ARINC429
Test and Simulation Modules for VME (6U)



  • Overview
  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Overview

General Features

Integrated modular solution by using the AMCX429-x PMC cards installed on AIM’s AVC-2 Generic VME64x (6U) carrier card.

The AMCX429-x is a member of AIM’s next generation of PMC modules targeted to embedded ARINC429 applications. The AMCX429-x offers full function test, simulation, monitoring and databus analyzer capabilities.

  • All channels software programmable for various Receive (Rx) or Transmit (Tx) modes incl. a Loop Pollution mode
    (link between Rx and Tx channel)
  • Supports up to 8 discrete inputs and 8 discrete outputs (per PMC card) which can be monitored or generated
  • Designed to be installed on either a host carrier board to adapt to buses (like standard PCI/PCIe, VME/VPX, cPCI/cPCIe) or on an embedded host computer

High Performance RISC Processor
The AMCX429-x modules use a high performance RISC processor with 128MB of Global RAM whereby all channels can operate concurrently at ARINC429 high or low bit rates with the intelligence to process data in real time.

Onboard Processing – IRIG-B Time Encoder/Decoder
An onboard IRIG-B time encoder/decoder provides a sinusoidal output and free-wheeling mode for time tag synchronization on system level.

Board Software Package
Full function driver software is delivered with the AMCX429-x cards in a comprehensive Board Software Package (BSP).

ARINC429 Functionality on further Form Factors

ARINC 429 PCI ARINC 429 PCIe ARINC 429 PMC
ARINC 429 XMC ARINC 429 PXI ARINC 429 PXIe
ARINC 429 CPCI ARINC 429 CPCIe ARINC 429 Ethernet
ARINC 429 USB ARINC 429 VME
Specifications

Integrated modular solution by using the AMCX429-x PMC cards installed on AIM’s AVC-2 Generic VME64x (6U) carrier card.

  • Full performance on all ARINC429 channels concurrently and programmable for high/low speed Bit rates
  • Full Error Injection/Detection
  • Cyclic/Acyclic/FIFO Transmitter operation
  • Loop/Pollution mode (Receive-Modify-ReTransmit)
  • Label Selective Trigger for Capture and Filtering
  • 100% Real Time Recording and Synchronised Replay of all ARINC429 channels concurrently
  • IRIG-B Time Encoder/Decoder
  • Driver Software included: VxWorks
Documents
  • Data Sheet
  • Release Notes
  • User Manuals
  • Tutorials
Data Sheet
AVC429-x
Download AVC429-x 19-08-19 596.96 KB
Release Notes
User Manuals
Tutorials
ARINC429 Tutorial
Download ARINC429 Tutorial 19-07-12 1.17 MB
Software
  • VxWorks Legacy
VxWorks Legacy
Latest Version
Accessories
ACB-AMC-4

Ready Made Adapter Cable (2.0 m): SCSI68 (screw-locked type) to 1x D-Sub37 (female) for ARINC429, 1x D-Sub15 (female) for Trigger I/O and IRIG-B, 1x D-Sub25 (female) for Discrete I/O for AMCX429-4/AXC429-4 cards

ACB-AMC-4 Pin-Out:
100.26 KB
ACB-AMC-8

Ready Made Adapter Cable (2.0 m): SCSI68 (screw-locked type) to 1x D-Sub37 (female) for ARINC429, 1x D-Sub15 (female) for Trigger I/O and IRIG-B, 1x D-Sub25 (female) for Discrete I/O for AMCX429-8/AXC429-8 cards

ACB-AMC-8 Pin-Out:
100.34 KB

ACB-AMC-16

Ready Made Adapter Cable (2.0 m): SCSI68 (screw-locked type) to 1x D-Sub37 (female) for ARINC429, 1x D-Sub15 (female) for Trigger I/O and IRIG-B, 1x D-Sub25 (female) for Discrete I/O for AMCX429-16/AXC429-16 cards

ACB-AMC-16 Pin-Out:
100.50 KB
ACB-AMC-32

Ready Made Adapter Cable (2.0 m): SCSI68 (latched type) to 2x D-Sub37 (female) for ARINC429 and 1x D-Sub15 (female) for IRIG-B and Trigger Out for AIM ARINC429 32-Channel cards.

ACB-AMC-32 Pin-Out:
154.74 KB
Related Products
AMCX429-x
AMCX429-x

4, 8, 16, 32 Channel ARINC429 PMC Module

See details
AVC-2
AVC-2

VME Carrier Card with 2 PMC Slots

See details
