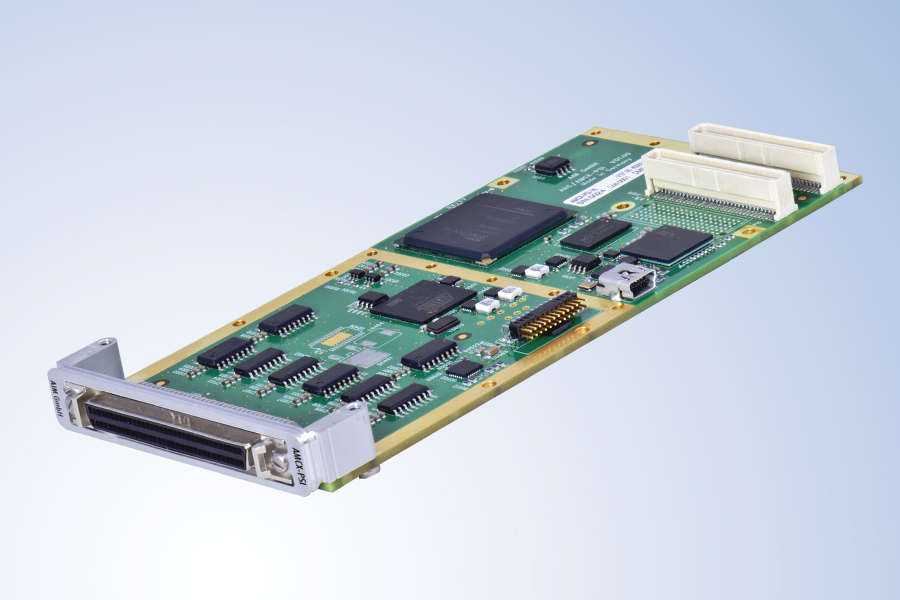

AMCX-PSI-16

16 Channel PANAVIA
Test & Simulation Module
for PMC

  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Specifications

The AMCX-PSI-16 is a member of AIM’s next generation of PMC modules targeted to embedded PANAVIA applications providing simulation, monitoring and recording, protocol testing and data selection of 8 transmit (TX) and 8 receive (RX) serial data channels according to the PANAVIA serial link specification.

The AMCX-PSI-16 modules are designed as a functional replacement module for the legacy API-/ACI-PSI-16 modules.

  • PANAVIA Receiver: Tag Oriented or Chronological Data Storage
  • PANAVIA Transmitter: Continous Data and Clock Transmission, Progammable Tag Sequence
  • Full Error Injection/Detection
  • IRIG-B Time Encoder/Decoder
  • Drivers for 32/64-bit Windows
  • Optional Databus Test and Analysis Software



Documents
  • Data Sheet
  • User Manuals
Data Sheet
AMCX-PSI-16
Download AMCX-PSI-16 18-11-13 373.37 KB

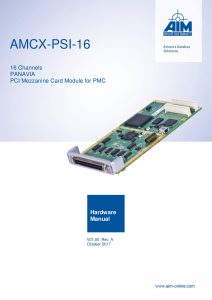

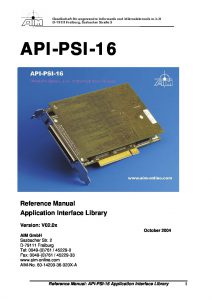

User Manuals

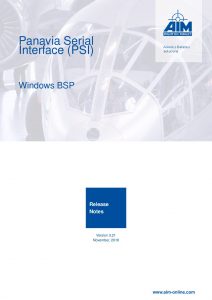

Software
  • Windows
Windows
Latest Version
Accessories
ACB-AMC-32

Ready Made Adapter Cable (2.0m): SCSI68 (screw-locked type) to 2x D-Sub37 (female) for PANAVIA and 1x D-Sub15 (female) for IRIG-B and Trigger Out can be used for the AMCX-PSI-16/AXC-PSI-16 cards (the pinout is compatible with the adapter cable ACB-8-16-PCI)

Related Products
ACC-1
ACC-1

cPCI (3U) Carrier Card with 1 PMC Slot

See details
ACP-1
ACP-1

PCI Carrier Card with 1 PMC Slot

See details
ACPe-1
ACPe-1

PCIe Carrier Card with 1 PMC Slot

See details
