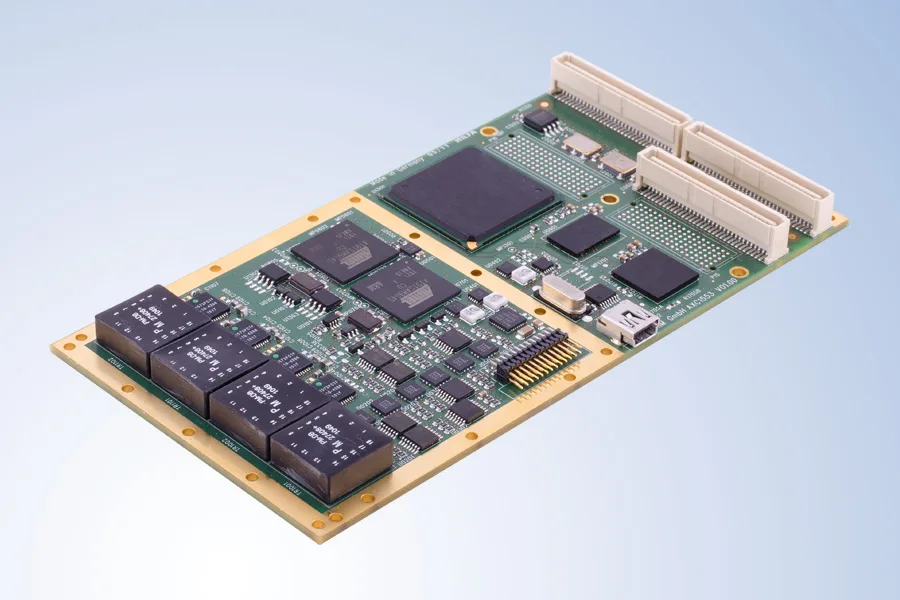

AMCE1553-x

Rugged Embedded MIL-STD-1553
Conduction Cooled PMC Card

  • Overview
  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Overview

General Features
The AMCE1553-x is a member of AIM’s family of PCI Express based PMC-Mezzanine (IEEE1386.1) modules targeted to embedded
MIL-STD-1553 applications. The AMCE1553-x offers full function test, simulation, monitoring and databus analyzer capabilities.

  • Designed to meet or exceed vibration requirements as specified in ANSI/VITA 47 for class V3
  • Designed to meet the shock requirements specified in ANSI/VITA 47 for class OS2
  • Conduction cooled Rear I/O cards with the capability to handle up to 4 dual redundant MIL-STD-1553 streams with a maximum
    of 8 Avionics Level Discrete Inputs and 8 Avionics Level Discrete Outputs in addition to Trigger I/O
  • Cards are well prepared for embedded applications requiring fast and autonomous boot up to operational mode

    Common Core Hardware Design
    The AXE1553-x modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors
    (Bus Interface Units) to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.

    Board Software Package
    An Application Programming Interface (API) is provided along with operating system specific drivers for Windows, Linux and VxBus. Please contact your local sales representative for other operating systems.

    MIL-STD-1553 Functionality on further Form Factors

    1553 PCI 1553  PCIe 1553 PMC
    1553 XMC  1553 PXI  1553 PXIe
    1553 CPCI  1553 CPCIe  1553 PCIe Mini Card
     1553 USB  1553 VME 1553 Ethernet
    Specifications

    Rugged embedded MIL-STD-1553 conduction cooled PMC card.

    • ANSI VITA 47 qualified
    • Low power dissipation
    • High performance RISC processors onboard
    • DMA Engine for optimized bus transfers and low PCIe bus utilization
    • 128MB Global RAM onboard for data scheduling and buffering
    • Flexible and upgradeable firmware design provides full control of obsolescence and configuration management
    • Firmware lock to ensure no flashing during operation
    • Up to 4 dual redundant MIL-STD-1553 channels
    • 8 Open/Ground Avionics/Digital Discrete I/O
    • 3 digital Trigger Inputs and 3 digital Trigger Outputs per MIL-STD-1553 channel
    • IRIG-B Input and Output

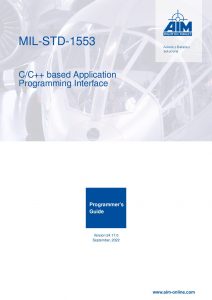

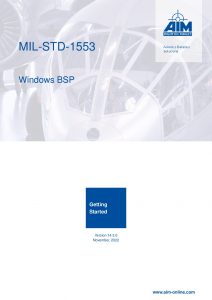

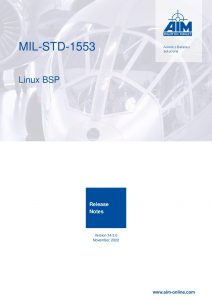

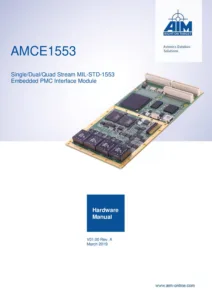

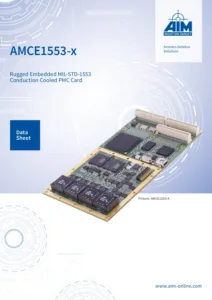

    Documents
    Software
    • Windows
    • Linux
    • VxWorks 7.x VxBus
    Windows
    Linux
    Latest Version
    VxWorks 7.x VxBus
    Latest Version
