FOL1553/429

Fibre Optic MIL-STD-1553/ARINC429
Databus Extension System

  • Specifications
  • Documents
  • Related Products
  • Contact
Specifications

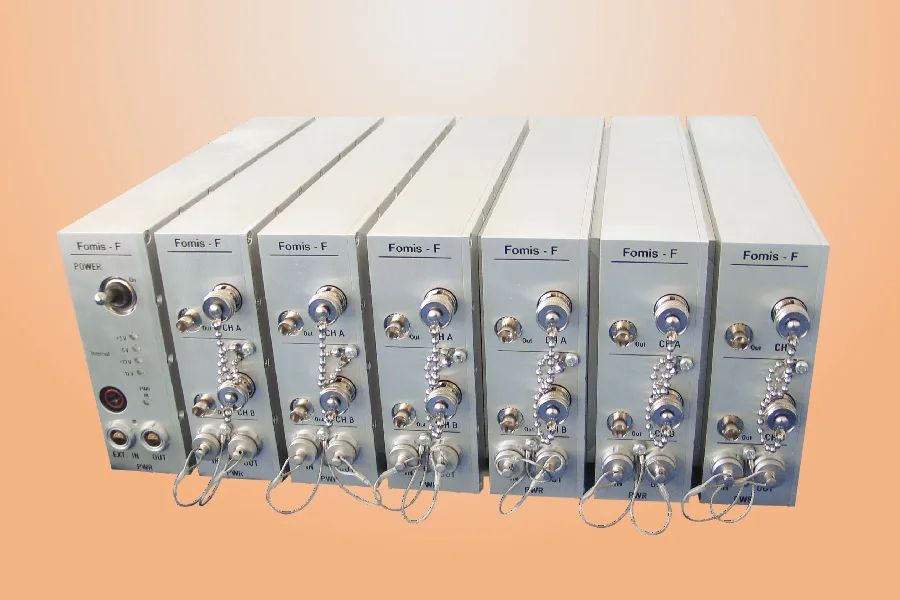

AIM’s field proven FOL System provides a reliable MIL-STD-1553 Bus stub and/or ARINC429 extensions, using a Fibre Optic link to support EMC/EMI testing of Aircraft or Missile systems. The modular design FOL from AIM comprises a 2 part system and requires no software. The FOL-F is modular design ‘Front End’ chassis built with a special EMC resistant housing to allow operation in electro magnetic fields (up to 200V/m) within the test environment. The FOL-L is a laboratory device build into a 19” rack mount chassis.

  • Simulator System: MIL-STD-1553 bi-directional optical extension for 1-4 dual redundant MIL-STD-1553 (MILBus) stubs up to 100m (limited by MIL-STD-1553 response time extension). (FOL429 provides ARINC429 16Tx & 16Rx bi-directional channels)
  • Monitor System: Uni-directional optical extension of 1-6 dual redundant MIL-STD-1553 stubs. (FOL429 provides ARINC429 16Rx channels), for more than 500m (limited by the attenuation of the fibre)
  • Optical Link: COTS 62.5/125µm multimode gradient index fibre with ST connectors (wavelength 1300nm)
  • EMC protected Front-End devices: FOL-F
  • 19” Rack Laboratory Units: FOL-L
  • Extended Temperature FOL-F available
  • FOL-F battery packs for stand alone operation
  • FOL429 version extends multiple ARINC429 links
Documents
  • Data Sheet
  • User Manuals
  • Tutorials
Data Sheet

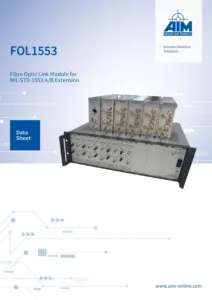

FOL1553/429
Download FOL1553/429 13-08-23 175.62 KB
User Manuals

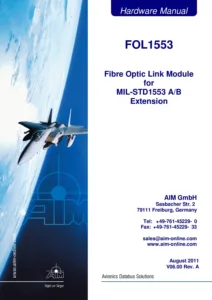

FOL1553 Hardware Manual
V06.00 Rev A 1.53 MB

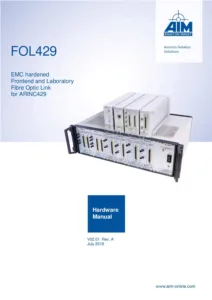

FOL429 Hardware Manual
V02.00 Rev A 653.10 KB
Tutorials
Related Products
FOL1553-P
FOL1553-P

Portable MIL-STD-1553 Fibre Optic Extension System

See details
FOL429-P
FOL429-P

Portable ARINC429 Fibre Optic Extension System

See details
