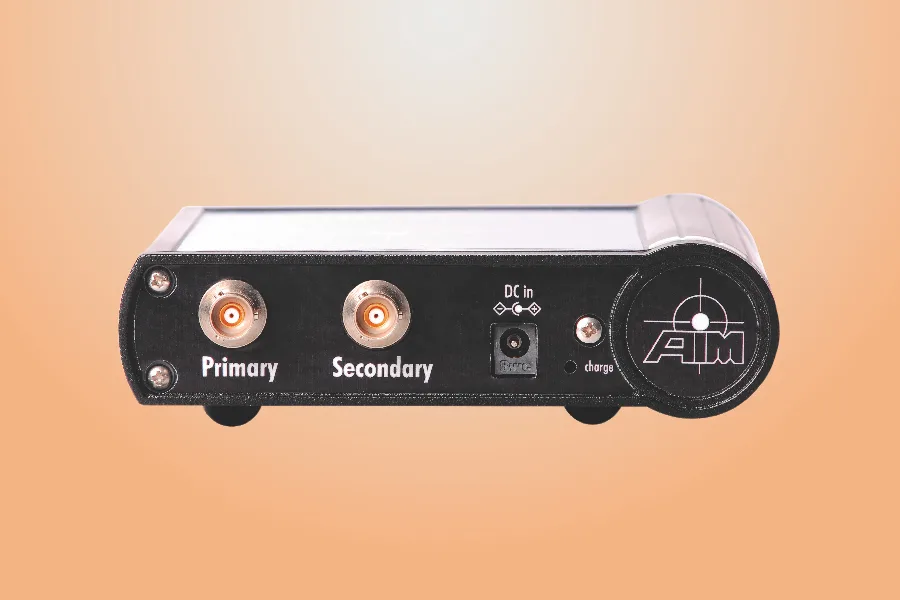

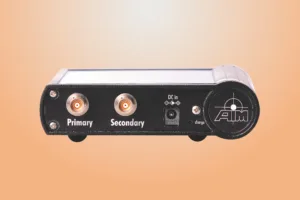

FOL1553-P

Portable Standalone Fibre Optic Extension Systems
for MIL-STD-1553

  • Specifications
  • Documents
  • Related Products
  • Contact
Specifications

FOL1553-P is a portable, Fibre Optic link extension system designed for MIL-STD-1553 bus stubs. Comprising of a 2 part system, it has been designed for applications where the distance from a UUT (Unit Under Test) has to be extended for EMC testing or remote monitoring.
2 types of FOL-P’s are available. The SIMULATOR system extends the bus stub up to 100 metres and the MONITOR system up to 500 metres.

  • Portable – easy to use Plug & Play design
  • Optical link: COTS 62.5/125um multimode gradient index fibre with ST-connectors (1300nm)
  • EMC protection per common industry standards
  • Extended temperature version available
  • Integrated battery pack for stand alone operation
  • External DC power supply for operation & charging
  • Transformer coupled, dual redundant MIL-STD-1553 Bus interface
Documents
  • Data Sheet
  • User Manuals
  • Tutorials
Data Sheet
FOL1553-P
Download FOL1553-P 10-11-01 314.59 KB
User Manuals
FOL1553-P Hardware Manual
V01.10 Rev A 487.77 KB
Tutorials
Related Products

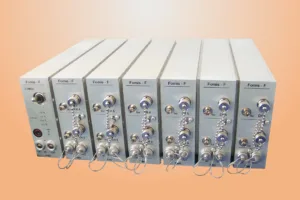

FOL1553/429
FOL1553/429

MIL-STD-1553/ARINC429 Fibre Optic Extension System

See details
