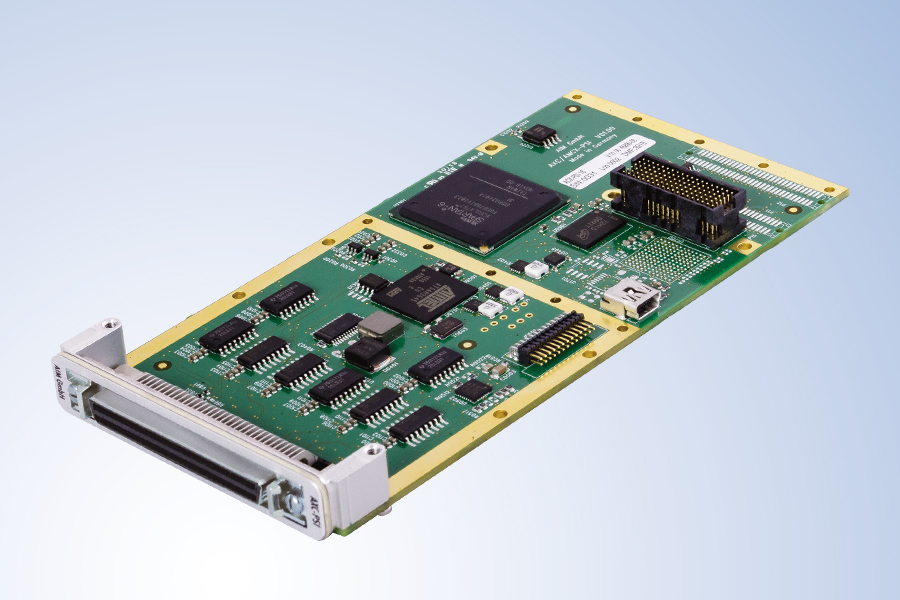

AXC-PSI-16

16 Channel PANAVIA
PCIe Mezzanine Card Module
for XMC

  • Specifications
  • Documents
  • Software
  • Accessories
  • Related Products
  • Contact
Specifications

The AXC-PSI-16 is a member of AIM’s next generation of XMC modules targeted to embedded PANAVIA applications providing simulation, monitoring and recording, protocol testing and data selection of 8 transmit (TX) and 8 receive (RX) serial data channels according to the PANAVIA serial link specification.

The AXC-PSI-16 modules are designed as a functional replacement module for the API-/ACI-PSI-16 modules

  • PANAVIA Receiver: Tag Oriented or Chronological Data Storage
  • PANAVIA Transmitter: Continous Data and Clock Transmission, Progammable Tag Sequence
  • Full Error Injection/Detection
  • IRIG-B Time Encoder/Decoder
  • Drivers for 32/64-bit Windows
  • Optional Databus Test and Analysis Software
Documents

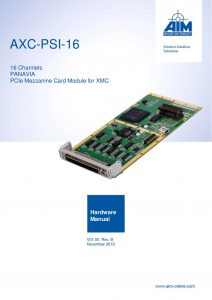

  • Data Sheet
Data Sheet
AXC-PSI-16
Download AXC-PSI-16 18-11-27 381.35 KB
Software
  • Windows
Windows
Latest Version
Accessories
ACB-AMC-32

Ready Made Adapter Cable (2.0 m): SCSI68 (screw-locked type) to 2x D-Sub37 (female) for ARINC429 and 1x D-Sub15 (female) for IRIG-B and Trigger Out for AMCX429-32/AXC429-32 cards.

Related Products
ACPx-1
ACPx-1

PCIe Carrier Card with 1 XMC Slot

See details
