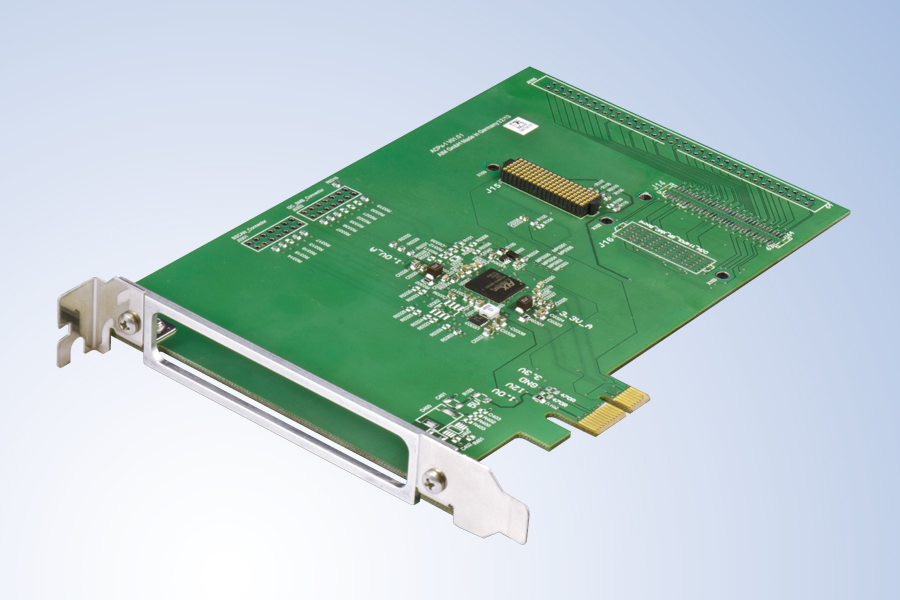

ACPx-1

PCI-Express Generic Carrier Card
for XMC (PCI-Express bus Mezzanine Card) Modules

  • Specifications
  • Documents
  • Related Products
  • Contact
Specifications

PCI-Express generic carrier card for XMC (Switched Fabric Mezzanine Card) with 1 XMC slot. Modular solution combines any AIM XMC module for AFDX®/ARINC664P7, ARINC429, MIL-STD-1553 or any standard 3rd party, VITA 42.3 compliant XMC module.

  • Gen 2 PCI Express bus operation of 5GB/s data rate
  • Single lane standard height, half-length PCI-Express add-in card
  • Fully compliant to PCI Express Specification, Rev. 2.1
  • XMC standard for VITA 42.0 and 42.3-200
Documents
  • Data Sheet
  • User Manuals

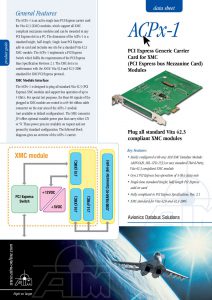

Data Sheet

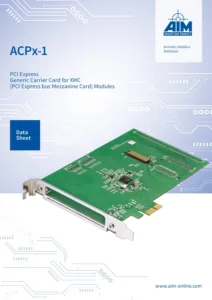

Download ACPx-1 24-04-22 2.08 MB

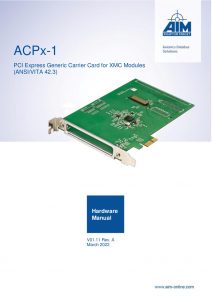

User Manuals

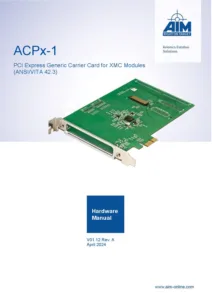

V01.12 Rev A 969.45 KB
Related Products
AXC1553-xT
AXC1553-xT

1, 2 Stream MIL-STD-1553 XMC Module, prog. Coupling...

See details
AXC1553-x
AXC1553-x

1, 2, 4 Stream MIL-STD-1553 XMC Module

See details
AXC429-x
AXC429-x

8, 16, 32 Channel ARINC429 XMC Module

See details
AXC-FDX-2
AXC-FDX-2

2 Port 10/100/1000Mbit/s AFDX®/ARINC664P7 XMC Module

See details
AXC-PSI-16
AXC-PSI-16

16 Channel PANAVIA Test & Simulation Module for XMC

See details
AXC3910
AXC3910

1 Stream STANAG3910/EFEX XMC Module

See details
