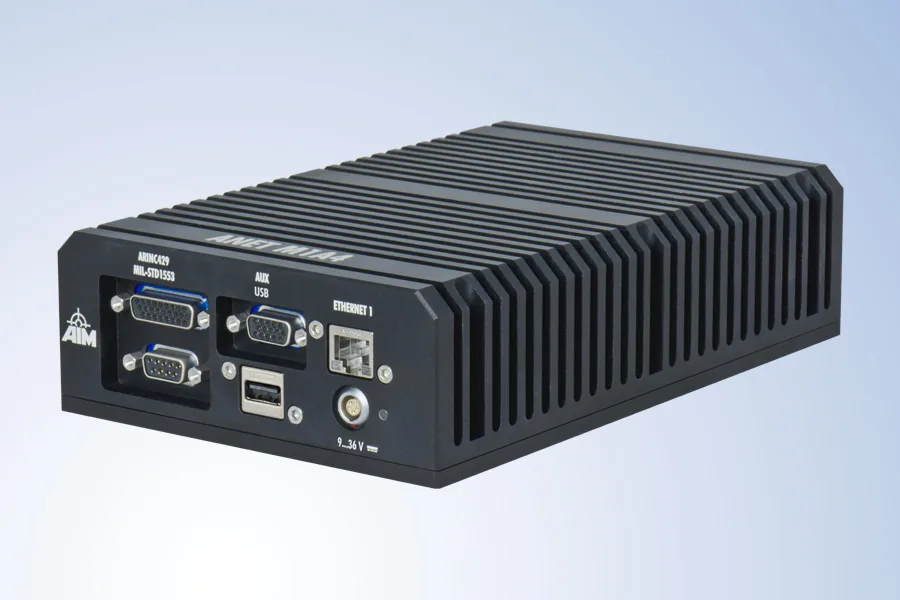

The ANET-MxAy-R is the rugged variant of the ANET-MxAy which is available in a dedicated rugged housing.
The unit has been tested for:
- Shock, Vibration, Humidity, Altitude (all MIL-STD-810G)
- EMC (EN 55022: 2011-12, EN 55024 2011-09)
The default power input range is 9…36VDC and therefore compatible to the 28VDC aircraft power.
The I/O connectors are standard type connectors, for the power input connector a breakout cable is optionally available.
The functional features are equivalent to the standard ANET-MxAy
- Data Sheet
- Release Notes
- User Manuals
- Tutorials
- White Paper

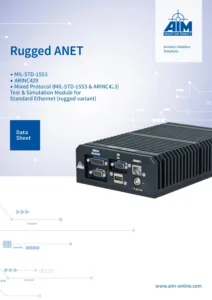

![Rugged ANET](https://www.aim-online.com/wp-content/uploads/2023/09/aim-ds-anet-rugged-01-230901-pdf-212x300.jpg)

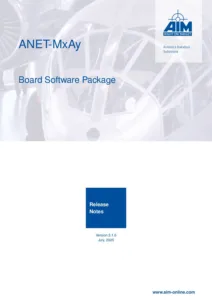

![ANET-MxAy Release Notes](https://www.aim-online.com/wp-content/uploads/2022/03/Release_Notes-2.0.0-pdf-212x300.jpg)

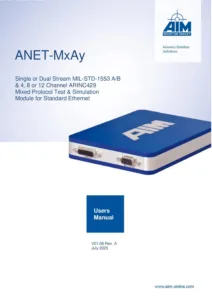

![ANET-MxAy User Manual](https://www.aim-online.com/wp-content/uploads/2023/04/ANET-MxAy_Users-Manual_V0105-A-pdf-212x300.jpg)
![MIL-STD-1553 Reference Manual](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Reference-Manual-24.20.0-pdf-212x300.jpg)

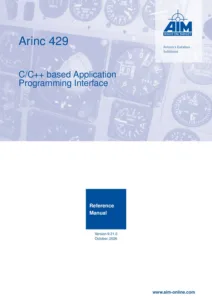

![ARINC429 Reference Manual](https://www.aim-online.com/wp-content/uploads/2022/06/Arinc_429_API_Reference_Manual-12.3.0-pdf-212x300.jpg)

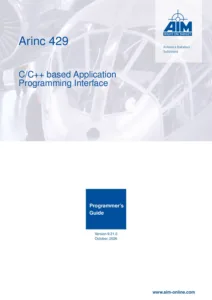

![ARINC429 Programmers Guide](https://www.aim-online.com/wp-content/uploads/2022/06/Arinc_429_API_Programmers_Guide-12.3.0-pdf-212x300.jpg)
![MIL-STD-1553 Programmers Guide](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Programmers-Guide-24.20.0-pdf-212x300.jpg)
![ANET Whitepaper](https://www.aim-online.com/wp-content/uploads/2017/12/ANET_Whitepaper_V0100_Release-pdf-232x300.jpg)
Learn more about the ANET added values.
![ANET Functional Concept](https://www.aim-online.com/wp-content/uploads/2017/12/ANET_Functional_Concept_15Jul2016-300x197.jpeg)
Get an overview over the ANET functional concept and its features.
- Windows
- Linux
![ANET-ADK](https://www.aim-online.com/wp-content/uploads/2018/05/CC-300x169.png)
ANET-ADK
The ANET-ADK (ASP Development Kit) is a optional tool kit for the development of customer applications written in C and executed on the ANET Application Support Processor (ASP) under LINUX Operating System. A customer application executed onboard the ANET can use the ANET’s MIL-STD1553 or ARINC429 interface via the standard Application Programming Interface functions similar to an application using the ANET from a host. However the full ANET LINUX environment is available to the customer applications so that standalone custom devices like gateways, bus translators etc. can be implemented very efficiently.
ACB-PCI-1
Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to two Twinax Connectors PL-75
ACB-PCI-1 Pin-Out:
ACB-PCI-2
Ready Made Adapter Cable (2.0 m): From 9-pin D-Sub to four Twinax Connectors PL-75
ACB-PCI-2 Pin-Out:
![ANET-MxAy](https://www.aim-online.com/wp-content/uploads/2017/08/aim-module-anet-mixed-mxay-170820-2-300x200.jpg)
MIL-STD-1553/ARINC429 Mixed Protocol Ethernet Module
