General Features

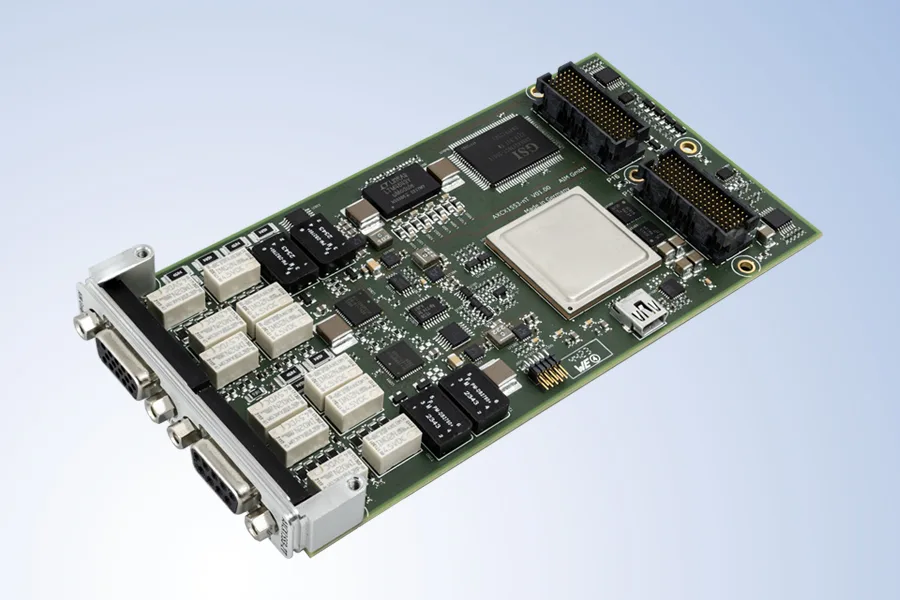

The AXCX1553-xT is a member of AIM’s new family of PCI Express based XMC-Mezzanine (ANSI/VITA 42.3) modules targeted to embedded MIL-STD-1553 applications. The AXCX1553-xT offers full function test, simulation, monitoring and databus analyzer capabilities.
- Concurrently acts as Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor
- Physical Replay capability- electrically reconstruct and replay previously recorded MIL-STD-1553A/B record files physically to the
MIL-STD-1553A/B bus with excellent timing accuracy - Versions with reduced functionality (Single Function or Simulator Only) are available as well as extended temperature range variants
- Capability to handle 8 General Purpose Discrete I/O (GPIO) signals and also offer Trigger-I/O
- Designed to be installed on either a carrier board to adapt to buses (like standard PCI/PCIe, VME/VPX or cPCIe) or on an embedded
host computer
Common Core Hardware Design
The AXCX1553-xT modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with multiple built-in softcore processors
to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.
Board Software Package – Optional Analyzer Software/Test Plan Software
Full function driver software is delivered with the AXCX1553-xT cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with AXCX1553-xT modules.
MIL-STD-1553 Functionality on further Form Factors
1553 PCI | 1553 PCIe | 1553 PMC |
1553 XMC | 1553 PXI | 1553 PXIe |
1553 CPCI | 1553 CPCIe | 1553 PCIe Mini Card |
1553 USB | 1553 VME | 1553 Ethernet |
MIL-STD-1553 Test and Simulation modules for XMC with 1 or 2 dual redundant streams plus 8 Discrete I/O’s (on Rear-I/O).
- Concurrent BC, MRT (31) & Chronological/Mailbox Bus Monitor
- Full Error Injection/Detection (AS4112)
- Complex Triggering, Data Capture/Filtering and 100% Bus Recording
- Physical Bus Replay
- IRIG-B Time Encoder/Decoder
- Programmable Bus Coupling, onboard Bus Network and variable Output amplitude
- Full Function, Single Function and Simulator Only versions available
- Drivers for Linux and Windows
- Drivers for other embedded applications are available on request
- Optional Databus Test and Analysis Software and RT Production Test Plan
- Data Sheet
- Release Notes
- User Manuals
- Tutorials

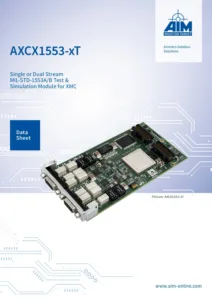

![AXCX1553-xT](https://www.aim-online.com/wp-content/uploads/2024/04/aim-ds-axcx1553-x-04-240223-pdf-212x300.jpg)
![MIL-STD-1553 Windows Release Notes](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-Release-Notes-15.1.0-pdf-212x300.jpg)

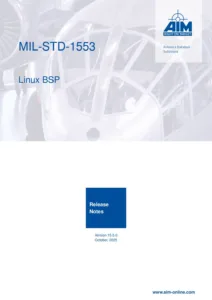

![MIL-STD-1553 Linux Release Notes](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-Release-Notes-15.1.0-pdf-212x300.jpg)

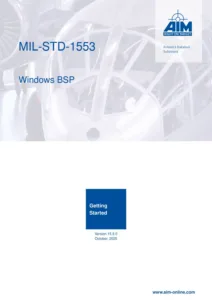

![MIL-STD-1553 Windows Getting Started](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)

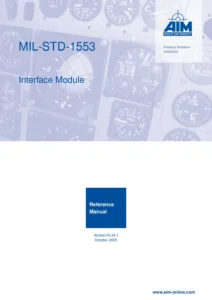

![MIL-STD-1553 Reference Manual](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Reference-Manual-24.20.0-pdf-212x300.jpg)

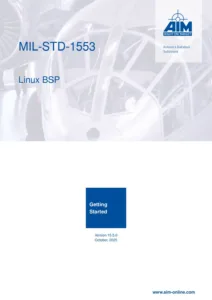

![MIL-STD-1553 Linux Getting Started](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)

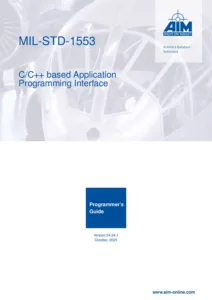

![MIL-STD-1553 Programmers Guide](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Programmers-Guide-24.20.0-pdf-212x300.jpg)

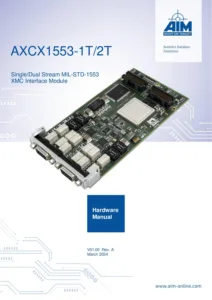

![AXCX1553 Hardware Manual](https://www.aim-online.com/wp-content/uploads/2024/03/AXCX1553-nT_HW-Manual-V0100_RevA_GmbH-pdf-212x300.jpg)
