General Features

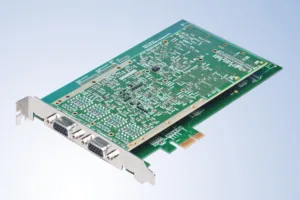

The ASE1553M-x card offers a single Lane PCIe cost efficient solution for basic MIL-STD-1553 applications for lab environment.
- Sinlge function mode to support Bus Controller (BC), BC and Bus Monitor, Multi-Remote Terminal (Multi-RT), Multi-RT and
Bus Monitor, or Bus Monitor only operation - Capability to handle 2 Avionics Level Discrete I/O signals which can be monitored or controlled (4-stream variant only)
- For more advanced features like concurrent BC/MRT/BM functionality and programmable MIL-STD-1553A/B bus frontend
features see the AIM APE1553-x product
Common Core Hardware Design
The ASE1553M-x modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors
(Bus Interface Units) to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.
Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for MIL-STD-1553 protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.
Board Software Package – Optional Analyzer Software/Test Plan Software
Full function driver software is delivered with the ASE1553M-x cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) can also be purchased for use with ASE1553M-x modules.
MIL-STD-1553 Functionality on further Form Factors
1553 PCI | 1553 PCIe | 1553 PMC |
1553 XMC | 1553 PXI | 1553 PXIe |
1553 CPCI | 1553 CPCIe | 1553 PCIe Mini Card |
1553 USB | 1553 VME | 1553 Ethernet |
Single Function MIL-STD-1553 Test and Simulation module for PCIe with 1, 2 or 4 dual redundant streams.
- Single Function BC or MRT (31) and Chronological/Mailbox Bus Monitor
- Error Detection only/no Error Injection
- Complex Triggering, Data Capture/Filtering and 100% Bus Recording
- No Physical Bus Replay
- IRIG-B Time Encoder/Decoder
- Drivers for Linux and Windows
- Optional Databus Test and Analysis Software
- Data Sheet
- Release Notes
- User Manuals
- Tutorials

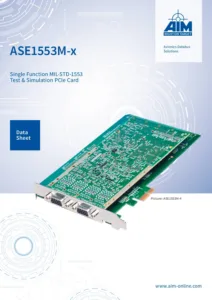

![ASE1553M-x](https://www.aim-online.com/wp-content/uploads/2023/09/aim-ds-ase1553m-x-01-230901-pdf-212x300.jpg)
![MIL-STD-1553 Windows Release Notes](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-Release-Notes-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Linux Release Notes](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-Release-Notes-15.1.0-pdf-212x300.jpg)

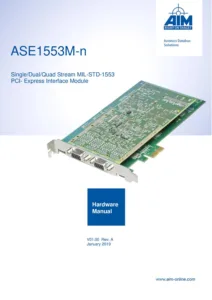

![ASE1553M Hardware Manual](https://www.aim-online.com/wp-content/uploads/2019/01/ASE1553M-n_HW-Manual-V0100_RevA_GmbH-pdf-212x300.jpg)
![MIL-STD-1553 Windows Getting Started](https://www.aim-online.com/wp-content/uploads/2024/05/MIL-STD-1553-Windows-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)

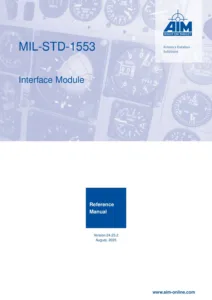

![MIL-STD-1553 Reference Manual](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Reference-Manual-24.20.0-pdf-212x300.jpg)
![MIL-STD-1553 Linux Getting Started](https://www.aim-online.com/wp-content/uploads/2017/11/MIL-STD-1553-Linux-BSP-Getting-Started-15.1.0-pdf-212x300.jpg)
![MIL-STD-1553 Programmers Guide](https://www.aim-online.com/wp-content/uploads/2017/09/MIL-STD-1553-Programmers-Guide-24.20.0-pdf-212x300.jpg)
![MIL-STD-1553 Tutorial](https://www.aim-online.com/wp-content/uploads/2019/07/aim-tutorial_ovw-mil-std-1553_190719-u-pdf-212x300.jpg)
ACB-HD15-1
Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to two Twinax Connectors PL-75
ACB-HD15-1-F
Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to two Twinax Connectors PL-75 and 9-pin D-Sub Connector for Trigger I/O and IRIG-B
ACB-HD15-2
Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75
ACB-HD15-2-F
Ready Made Adapter Cable (2.0 m): From 15-pin HD-Sub to four Twinax Connectors PL-75 and 9-pin D-Sub Connector for Trigger I/O and IRIG-B
ACB-HD15-2-F Pin-Out:
