ASC1553-2

Dual Stream USB SmartCable for MIL-STD-1553 Test and Simulation

  • Overview
  • Specifications
  • Documents
  • Software
  • Related Products
  • Contact
Overview

General Features

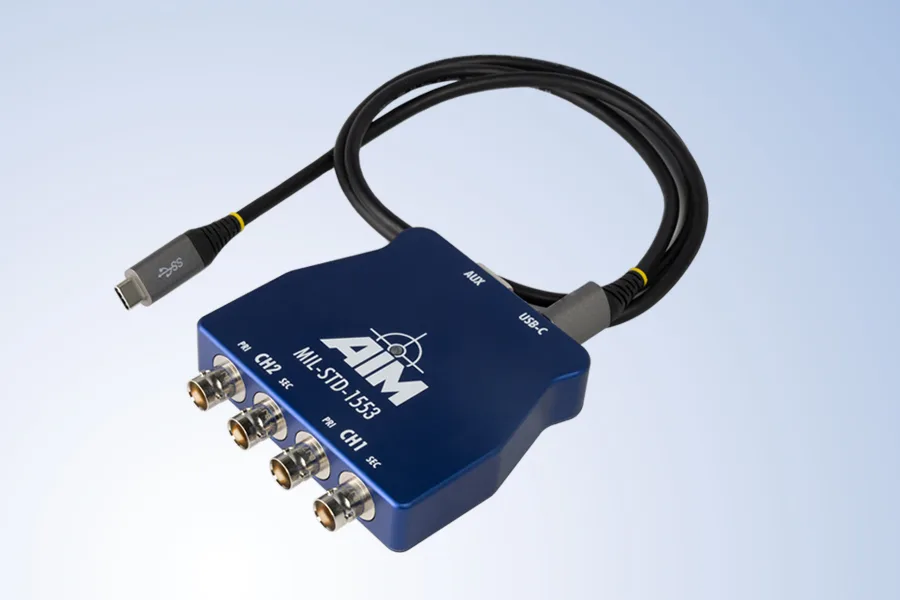

The ASC1553-2 (AIM SmartCable™) USB module offers full function test, simulation, monitoring and databus analyzer capabilities for
MIL-STD-1553 applications.

  • Provides a dual stream, dual redundant MIL-STD-1553 interface and concurrently acts as Bus Controller, Multiple Remote Terminals (31) and
    Chronological/Mailbox Monitor
  • Powered from the host computer via a single USB-C connection – no external power adapter is required
  • Designed in a connector housing size
  • Supports up to 8 discrete input/output signals to be monitored or generated (ASC1553-2-A only)

Onboard Processing – IRIG-B Time Synchronization
An onboard high-precision free-wheeling IRIG-B time encoder/decoder allows users to accurately synchronize single or multiple
ASC1553-2 modules to a common time source (ASC1553-2-A only).

Board Software Package – Optional Analyzer Software
Full function driver software is delivered with the ASC1553-2 cards in comprehensive Board Software Packages (BSP’s) for different Operating Systems.
The optional PBA.pro™ Databus Test and Analysis Tool (for Windows and Linux) is compatible to the ASC1553-2.

MIL-STD-1553 Functionality on further Form Factors

1553 PCI 1553  PCIe 1553 PMC
1553 XMC  1553 PXI  1553 PXIe
1553 CPCI  1553 CPCIe  1553 PCIe Mini Card
 1553 USB  1553 VME 1553 Ethernet
Specifications

The ASC1553-2 (AIM SmartCable) USB module offers full function test, simulation, monitoring and recording for MIL-STD-1553B applications implemented in an ultra compact form factor.

  • Robust and Low Power USB-C module implementing a dual stream, dual redundant MIL-STD-1553 Interface, powered via a single USB-C port, no external power adapter required
  • Hot Plug Capability
  • Dual Stream, Dual Redundant Implementation
  • Concurrent Bus Controller, 31 Remote Terminals and Bus Monitor
  • Full Error Injection/Detection Capability
  • Multi Level Triggering for Capturing/Filtering
  • Real Time Recording and Physical Bus Replay at 100% Bus Loads
  • Drivers for Linux and Windows
  • Optional Databus Test and Analysis Software and RT Production Test Plan
  • Software compatible with AIM’s Family of MIL-STD-1553 cards
Documents

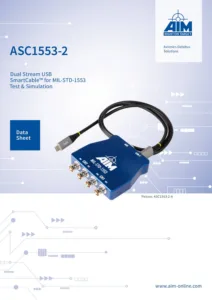

  • Data Sheet
  • Release Notes

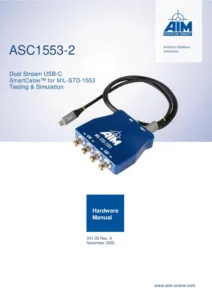

  • User Manuals
Software
  • Linux
  • Windows
Linux
Latest Version
Windows
