AMEE1553-x

Rugged Embedded MIL-STD-1553
PCI Express Mini Card

  • Overview
  • Specifications
  • Documents
  • Software
  • Contact
Overview

General Features

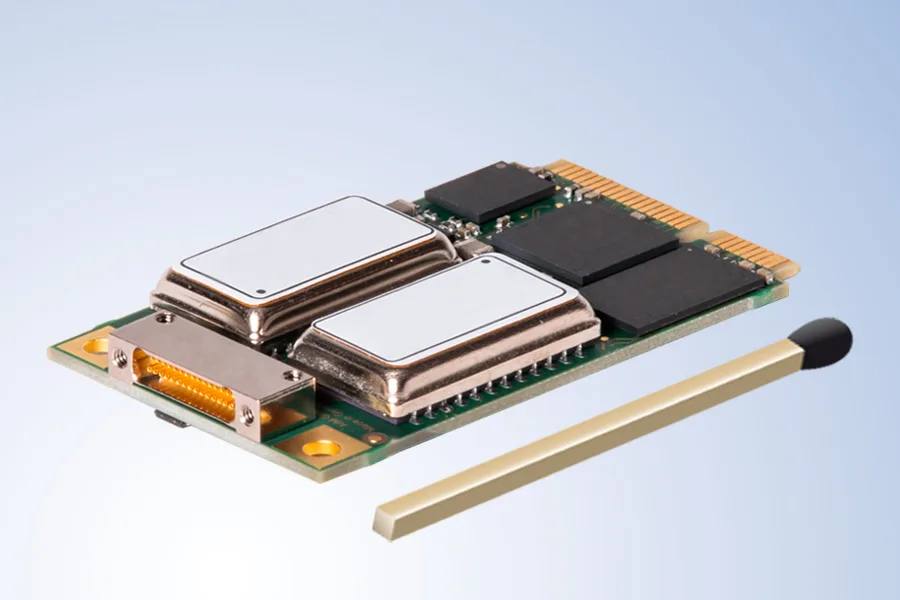

The AMEE1553-x is AIM’s new PCI Express Mini Card module targeted for embedded MIL-STD-1553B applications in an ultra-compact form factor.

  • Robust and low power PCI Express Mini Card implementing a Single or Dual Stream MIL-STD-1553 Interface
  • Operating Temperature Range: -40°C to +85°C
  • Well prepared for embedded applications requiring fast and autonomous boot up to operational mode
  • Bus Controller, Multiple Remote Terminals (31) and Chronological/Mailbox Bus Monitor (Single Function Only)
  • Supports 6 avionic discrete input and 2 avionic discrete in-/output signals to be monitored or generated. In addition 2 trigger inputs and 2 trigger outputs are provided.

Common Core Hardware Design
The AMEE1553-x modules use AIM’s ‘Common Core’ hardware design utilizing FPGA technology combined with RISC processors
(Bus Interface Units) to support MIL-STD-1553 bus protocol handling for precise scheduling of simulated messages acting as a Bus Controller and/or as multiple Remote Terminals as well as timestamping of received messages with 1µs resolution for Bus Monitor operation.

Onboard Processing – IRIG-B Time Synchronization
The use of onboard processors for MIL-STD-1553 protocol handling and large memory enables autonomous operation with minimal interaction with the host PC for real time applications. An onboard IRIG-B time encoder/decoder is included with sinusoidal output and free-wheeling mode for time tag synchronization on system level.

Board Software Package
An Application Programming Interface (API) is provided along with operating system specific drivers for Windows, Linux and VxBus. Please contact your local sales representative for other operating systems.

MIL-STD-1553 Functionality on further Form Factors

1553 PCI 1553  PCIe 1553 PMC
1553 XMC  1553 PXI  1553 PXIe
1553 CPCI  1553 CPCIe  1553 PCIe Mini Card
 1553 USB  1553 VME 1553 Ethernet
Specifications

Rugged Embedded single or dual stream MIL-STD-1553 PCI Express Mini Card supporting 6 avionic discrete input and 2 avionic discrete in-/output signals to be monitored or generated. In addition 2 trigger inputs and 2 trigger outputs are provided.

  • Single Function Device in following Modes:
    Chronological & RT Mailbox Monitor OR Multi-RT Simulator & Chronological & RT Mailbox Monitor OR BC Simulator & Chronological and RT Mailbox Monitor
  • Complex Triggering, Data Capture/Filtering, 100% Bus Recording
  • IRIG-B Time Decoder
  • Including Driver Software for Windows (for others please contact Factory)
Documents
  • Data Sheet
  • User Manuals

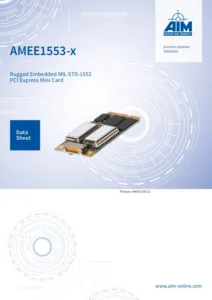

Data Sheet
AMEE1553-2
Download AMEE1553-2 21-06-16 1.69 MB
User Manuals

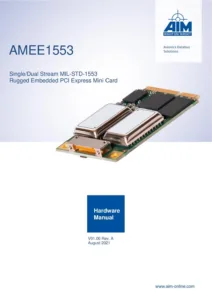

AMEE1553 Hardware Manual
V01.00 Rev.A 972.50 KB
Software
  • Windows
Contact
